Copper wire recycling machine for sale

Time:0000-00-00 00:00:00 Author:Suny Group

Copper wire recycling machine is an environmentally friendly machine, also known as copper wire pelletizer. The copper wire granulator is used for the recycling of waste cable wires. The copper and plastic are separated through the process of crushing, air separation or electrostatic separation. No fire, water or chemicals are used, so there is no secondary pollution to the environment. The separation rate of our copper wire recycling machine may reach 99.9%, you may not see copper in plastic and plastic in copper.

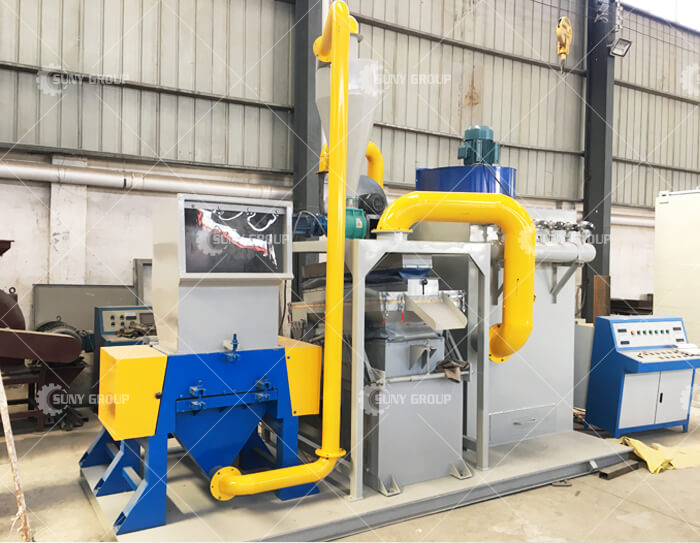

Copper wire recycling machine
copper wire recycling machine >>>Read More

What types of cables can be recycled?

The copper wire recycling machine recycles waste cable wires through the crushing and separation process, so there is no restriction on the size or type of the input cable wires. Any construction wires and cables, industrial cables, low voltage cables, flexible wires, fixed wires or special wires and cables, such as battery leads, marine wires, bus drop cables, electric vehicle cables, festoon cables, distributed power cables, etc. Both can be recycled by copper wire recycling machines.

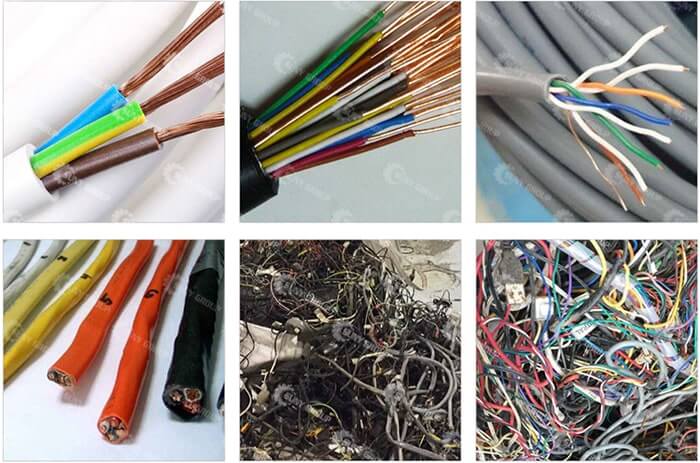

waste cable wires

Advantages-copper wire recycling machine

All-in-one compact design

The main body of our copper wire recycling machine adopts integrated design, compact structure, small footprint and easy to move to any place;

Fully automatic PLC control

The entire copper wire recycling process is under the control of PLC, which is easy to operate and one operator is sufficient;

Air suspension separation technology

The air separator uses Italian air suspension separation technology, which can precisely adjust the vibration frequency and air supply according to different materials.

High-quality SKD-11 alloy blade

This crusher uses SKD-11 alloy blades with a hardness of H85 degrees. In the case of alternating wear structures, it can ensure high wear resistance while ensuring good toughness.

High-efficiency pulse dust collector

The whole process adopts the advanced pulse dust collector sealing structure, which can ensure that no dust is flying during operation.

High-voltage electrostatic separation

For very thin wires (such as automotive wires less than 3mm), we also have an electrostatic separator, which can be equipped with an air separator for further separation, thus completely separating the remaining fine copper from the plastic.

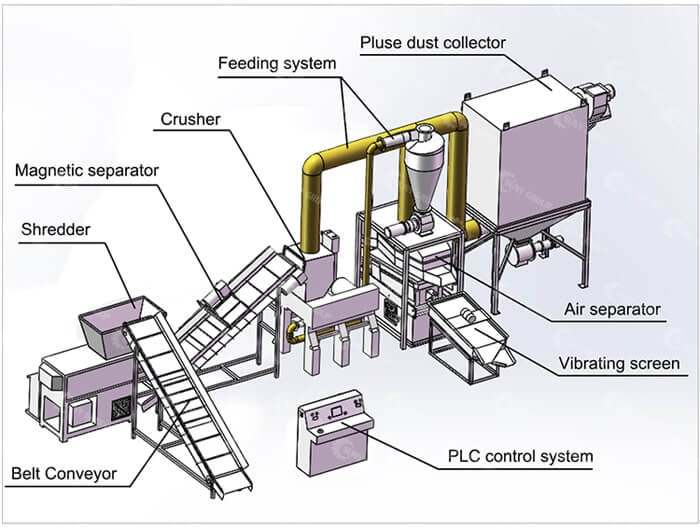

copper wire recycling machine structure

>>>Read More

Main accessories-copper wire recycling machine

Air separator

The air separator is the main component of the copper wire recycling machine, used to separate the crushed copper and plastic. It uses the principle of air suspension to separate materials with different gravity. Suitable for separating powdery or granular mixtures with a particle size of 50-200 mesh. High separation rate and easy operation. Usually used in conjunction with wind conveyors and dust removal systems to prevent dust from flying away.

Electrostatic separator

An electrostatic separator is an optional device for copper wire recycling machines for fine separation. Alternatively, when there are very thin wires that cannot be treated with an air separator, an electrostatic separator is needed. Electrostatic separators are widely used in copper wire recycling, PCB recycling, aluminum-plastic separation and mixed plastic separation processes. The separation rate of the electrostatic separator can reach nearly 100%.
