Cable Wire Recycling Machine

  • Product Introduction:

The cable wire recycling machine is used to separate and recover copper particles and PVC particles from various waste copper wires and cables. It is efficient and stable, and the purity can reach more than 99%.

Video Description:

  • PRODUCT DESCRIPTION:

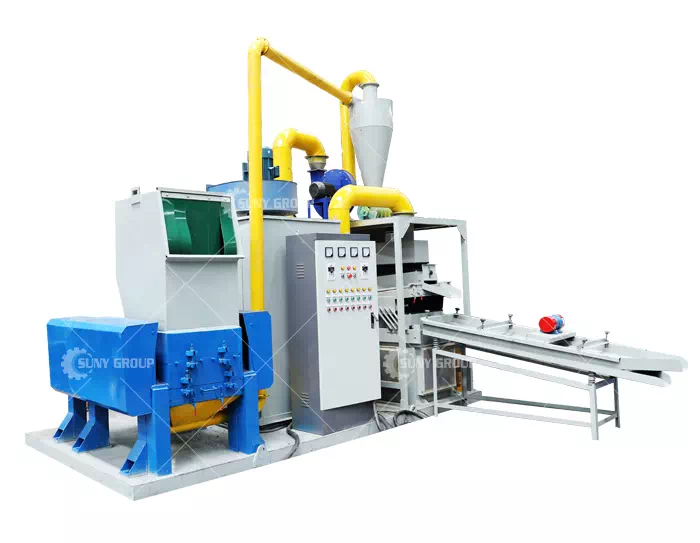

    cable wire recycling machine

    PRODUCT APPLICATION:

    The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.

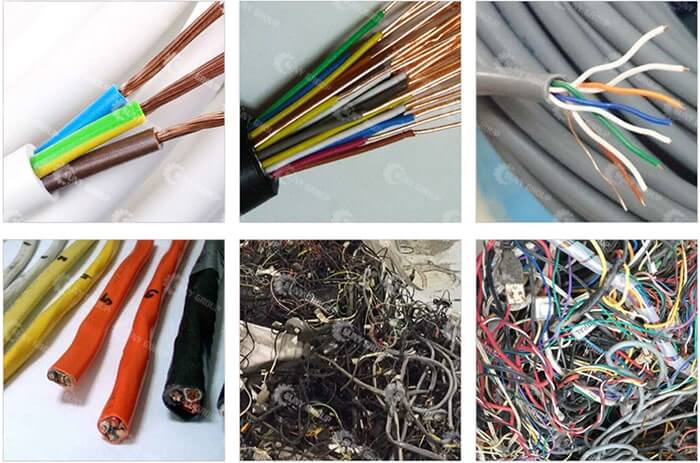

    Cable Wire Recycling Machine Raw Materials

    FIANL PRODUCTS:

    Scrap Cable Wire Recycling Crushing Separating Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

    copper and plastic

    PRODUCT STRUCTURE:

    The Scrap Cable Wire Recycling Crushing Separating Machine consists of shredding system, crushing system, sorting system and dust collection system. The whole process is controlled by PLC.

    Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , eventually get metal and non-metallic collective.

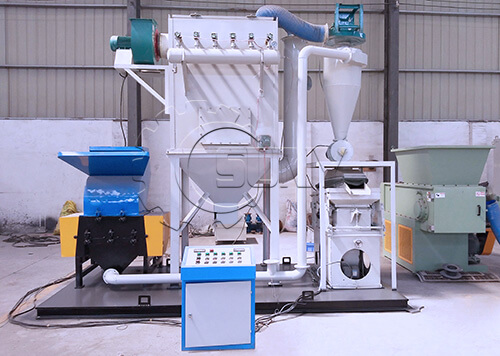

    cable wire recycling machine structure

    For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The copper wire recycling production line including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.

    PRODUCT FEATURE:

    1. Compact structure and reasonable layout, safe and reliable, easy to install, No dust outlet, the dust separation rate can reach up to 99%.

    2. Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.

    3. Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.

    4. This Scrap Cable Wire Recycling Crushing Separating Machine use the air separator and the high voltage electrostatic separator together, to improve the recovery rate up to 99%.

    crushing system
    sorting system
    whole control system

    WORKING PRINCIPLE:

    For the small capacity, the cable wires raw materials can be put into the al-in-one machine directly, after crushing, it will using the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

    For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.

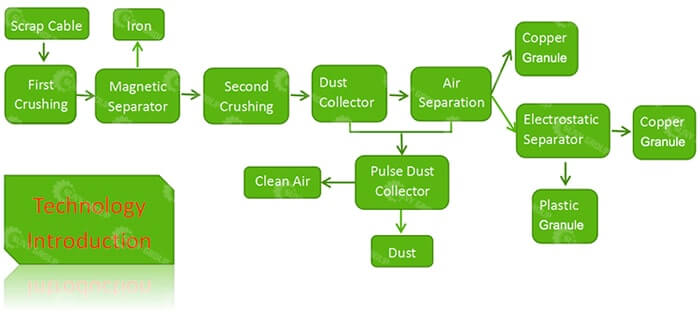

    PROCESS DESCRIPTION

    DAILY MAINTENANCE:

    1. Check whether the reducer is leaking oil, if so, please repair it in time;

    2. Check whether the conveyor belt is damaged, such as cracking, degumming, etc.;

    3. Check whether the bolts are loose, and if so, please tighten them in time;

    4. Check the wear degree of the blade once a week. Use a knife grinder to sharpen the knife. When it is severely worn, it should be replaced in pairs or in pairs.

    5. Lubricating oil is regularly added to the bearing with seat, and it is recommended to add lubricating oil once every 2-3 weeks;

    6. Regularly observe the screen, twice a day to ensure that there is no material blockage.

    7. Regularly check the insulation of the electrical system and the connection of the terminal. The explosion-proof surface is required to be clean; the cable must be replaced when it is damaged; the terminal must be re-tightened when it is loose.

    TECHNICAL PARAMETERS:

    ModelPower (Kw)Weight (Kg)Capacity (Kg/H)Dimension (m)
    ZY-TMJ200281850100-2002.2*2*2.3
    ZY-TMJ300392500200-3003.2*2.1*2.3
    ZY-TMJ400453200300-4004*2.1*2.5
    ZY-TMJ500683850400-5006.2*5*3.3
    ZY-TMJ800755500700-80010.4*2.1*3.3
    ZY-TMJ1000958200800-100012*4.1*4.5

    NOTE:

    1. Working voltage:380±10V(415V ,440V also can be custom);

    2. It can be customized fur 1t/h ur larger capacity.

    (If you want more detailed parameters and quotations, please contact us.Thanks!)

    SHIP:

    copper wire recycling machine delivery

    CUSTOMER CASE:

    Welcome to our Factory
    Welcome to our Factory
    Welcome to our Factory

    RELATED MACHINERY:

    New Fashion Low Price Automatic Electric Wire Stripper Manufacturer

    • Product Introduction:

    New Fashion Low Price Automatic Electric Wire Stripper Manufacturer In China is electricity operated machine.

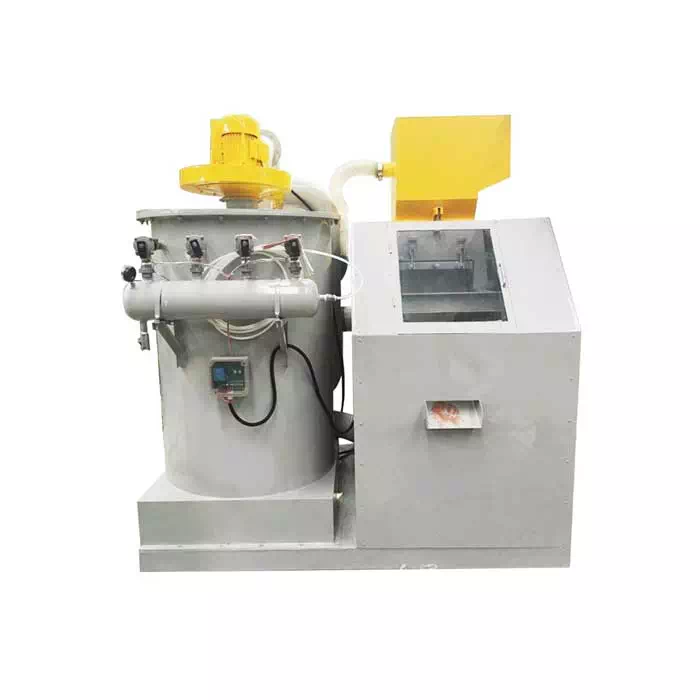

    Mini Copper Wire Granulator Recycling Machine Home Use
