Aluminum Plastic Recycling Machine

  • Product Introduction:

Aluminum-Plastic Recycling Machine is used for recovery of waste aluminum-plastic materials, can put the aluminum and plastic separation,it is mainly used for all kinds of aluminum tubes, aluminum-plastic bottle caps, car ornaments,and other plastic products separation recycling......

Video Description:

  • Product Description:

    Aluminum-Plastic Recycling Machine is used for recovery of waste aluminum-plastic materials, can put the aluminum and plastic separation,it is mainly used for all kinds of aluminum tubes, aluminum-plastic bottle caps, car ornaments,and other plastic products separation recycling.

    Raw Materials:

    Raw-material and output
    Raw-material and output

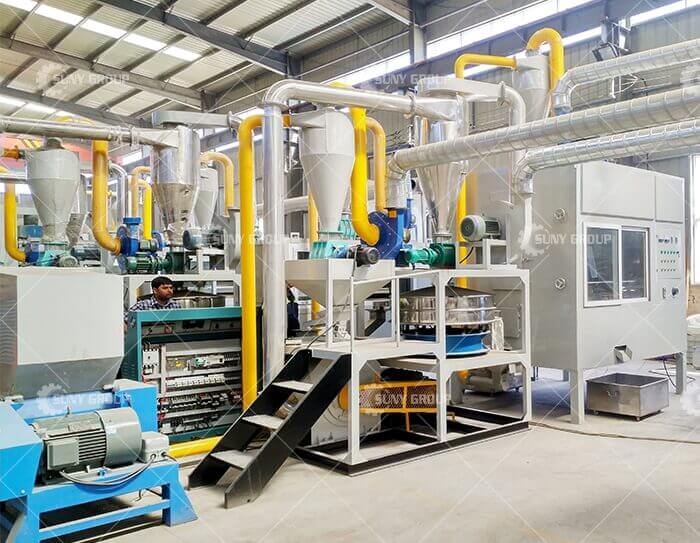

    System Structure:

    Equipment structure diagram

    Production Process:

    The aluminum and plastic materials firstly crushed by the knife crusher into 10mm pieces, and then grinding by the water cooling turbo type grinding machine into aluminum and plastic fine powders. Then separated by the rotary screen, the big size will back into the grinding machine and the fine powders will into the electrostatic separator, finally the aluminum and plastic would be separated.

    Process flow

    Final products:

    Aluminum-Plastic Recycling Machine Finished Product

    Compare With Other Suppliers:

    India customer visited our factory for Aluminum Plastic Crushine Separating Plant. He visited several suppliers during his tour in China and compared the aluminum powder separated from our system with those of other suppliers. He is quite satisfied with our equipment.

    Output comparison

    Note: The more uniform of material particles after milling, the better the sorting result.

    Main machines:

    CRUSHING SYSTEM: Crusher step-shearing style cutter can resolve the force bored by cuttings, and increase the force of cutting greatly. Blade quality have 9CrSi,Cr12MoV,SKD-II, D2 etc. Can be customized according to customer.

    Copper cable recycling machine capacity above 500 kg / h will be equipped with single shaft shredder. The shredder adopts the high hardness main shaft, make it has more impact power when crushing materials. It is composed of micro cutting head and cylindrical tool rod, greatly reduces the wearing parts (blades).

    GRINDING SYSTEM: New abrasive disk design, high capacity, good Wear Resistance, the service life is two times longer than the common abrasive disk.

    CIRCULAR VIBRATING SCREEN:Large Size Recycle for Second Time Grinding. Feedback system makes the grind much more effective.

    The NEGATIVE PRESSURE FEEDING SYSTEM prevent the dust from running out.

    AIR COOLER AND CIRCULATING WATER SYSTEM used to control temperature and reduce noise of the grinding system.

    WHOLE CONTROL: Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and Save labor.

    DUST REMOVAL SYSTEM: Dust particle with a diameter more than 0.3 micrometers can be gathered, and the dust collection efficiency is up to 99%;it is a small unit which can be directly installed nearby the indoor machine, and can be also made into large dust collector.

    Crushing system
    Crushing system
    Grinding system
    Grinding system
    Whole-control
    Whole-control

    Main characteristics:

    1. All the process is physical separation, without heating, burning, water and chemical, so it is environmental protection and no pollution.

    2. The process low cost, high efficiency and separation rate can be reached 99.8%.

    3. The production line is automatic, saving labor; just one or two person is enough for operating machine.

    4. This production line is used widely.

    5. Production line installation is convenient, has a variety of assembly method, can adapt to different venues.

    Technical parameters:

    ModelCapacityPowerWeight
    WAP-300300kg/h62kw7500kg
    WAP-500500kg/h98kw12500kg
    WAP-10001000kg/h170kw19500kg

    Customer Feedback:

    Customer Feedback
    Customer Feedback

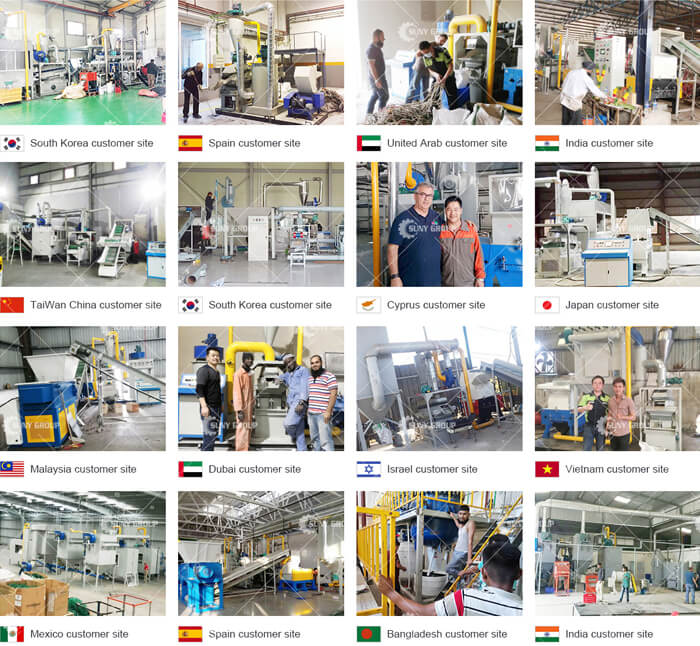

    Customer Case:

    >Customer Case

    Test and inspection:

    Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.

    Welcome to our Factory
    Welcome to our Factory
    Welcome to our Factory
