Metal Hydraulic Shear Cutting Machine

  • Product Introduction:

 The series of machines are suitable for mstal recycling procssing factor,theautormobile disrmanting plants..

Video Description:

  • PRODUCT DESCRIPTION:

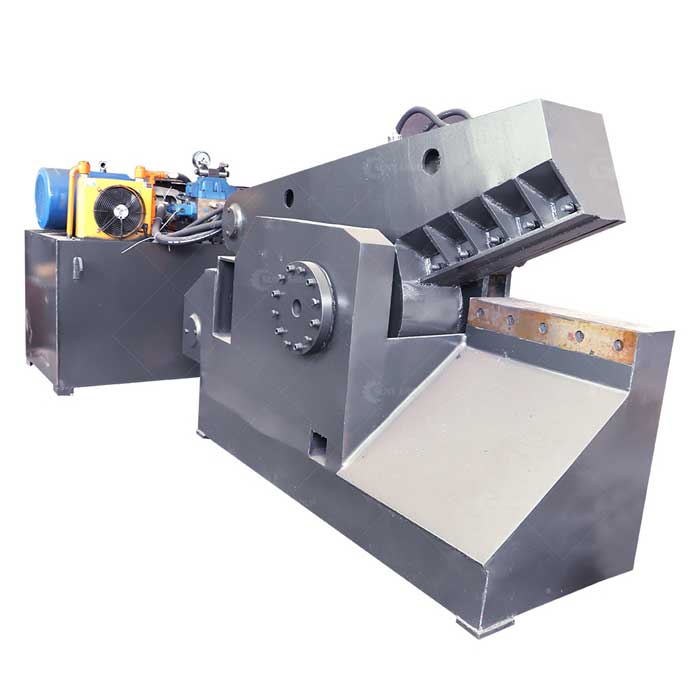

    Metal Hydraulic Shear Cutting Machine
    Metal Hydraulic Shear Cutting Machine02
    Metal Hydraulic Shear Cutting Machine03

    PRODUCT USAGE:

    The series of machines are suitable for mstal recycling procssing factor,theautormobile disrmanting plants, smelting foundry industry alkinds of shape steeland al kinds of metal structures for cold cut,processed into qualified burden.

    Metal Hydraulic Shear Cutting Machine04

    MODELS:

    Metal Hydraulic Shear Cutting Machine05

    PARAMETER:

    Model Max.Cutting Force  Blade length Max.blade opening Shearing speed Cutting standard Motor (KW)
    / Square Metal Round Metal
    Q43-63  63    ton  600 mm 320 mm 14~25 30x30 Φ35 7.5
    Q43-100 100   ton  600 mm 320 mm 14~25 40x40 Φ45 7.5
    Q43-160A 160   ton  600 mm 320 mm 11~12 55x55 Φ65 18.5
    Q43-200 200   ton  800 mm 380 mm 10~18 65x65 Φ70 22
    Q43-250 250   ton  800 mm 420 mm 8~16 70x70 Φ80 30
    Q43-315 315   ton 1200 mm 560 mm 6~10 80x80 Φ90 37
    Q43-400 400   ton 1200 mm 580 mm 4~10 90x90 Φ100 22x2
    Q43-600 600   ton 1800 mm 860 mm 4~10 100x100 Φ120 30x2

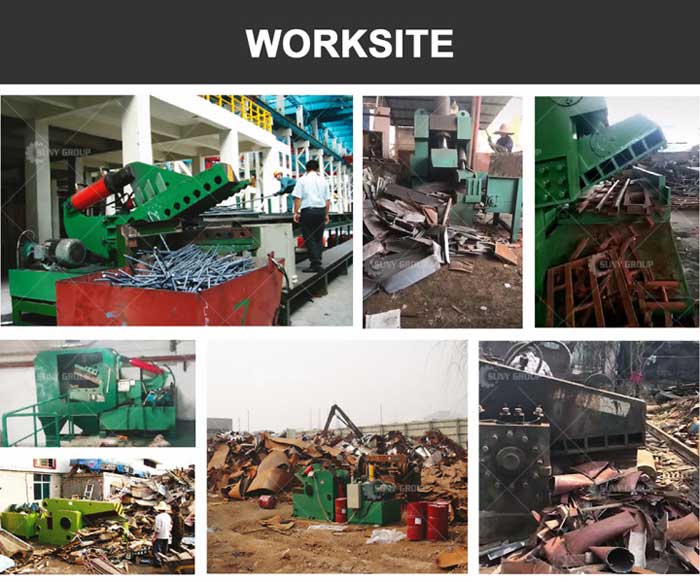

    CSAE:

    Metal Hydraulic Shear Cutting Machine06

    SPECIFICATIONS:

    Metal Hydraulic Shear Cutting Machine
    Metal Hydraulic Shear Cutting Machine
    Metal Hydraulic Shear Cutting Machine
