Single Shaft Shredder Machine

  • Product Introduction:

 Single Shaft Shredder Machine adopts European advanced technology, is mainly applied in the crushing...

Video Description:

  • PRODUCT DESCRIPTION:

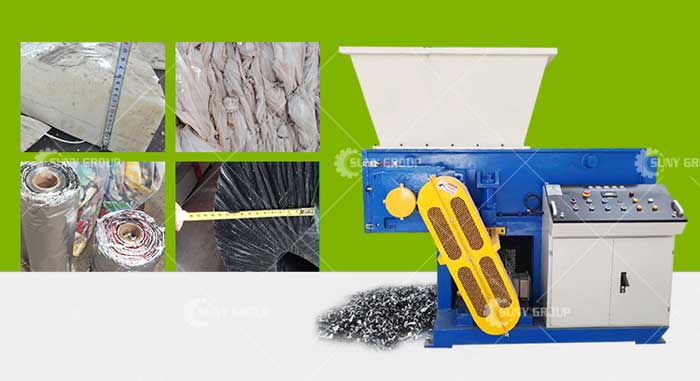

    Single Shaft Shredder Machine

    Single Shaft Shredder Machine adopts European advanced technology, is mainly applied in the crushing and recycling of various thick wall scrap materials and leftover materials in the plastic and rubber industry, can effectively crush extra thick, strong toughness and large materials.

    RAW MATERIALS:

    Raw Materials of Our Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle Plastic bottles, Cardboard. Woven bags. Plastic lumps like PP. PE, PET. PC. ABS. Nylon, Plastic pipes. Film. Plastic moulds,textiles. Woven bags, Electronic Waste. Cable, Aluminum cans, Paper,Wood. Sponge, foam, etc.

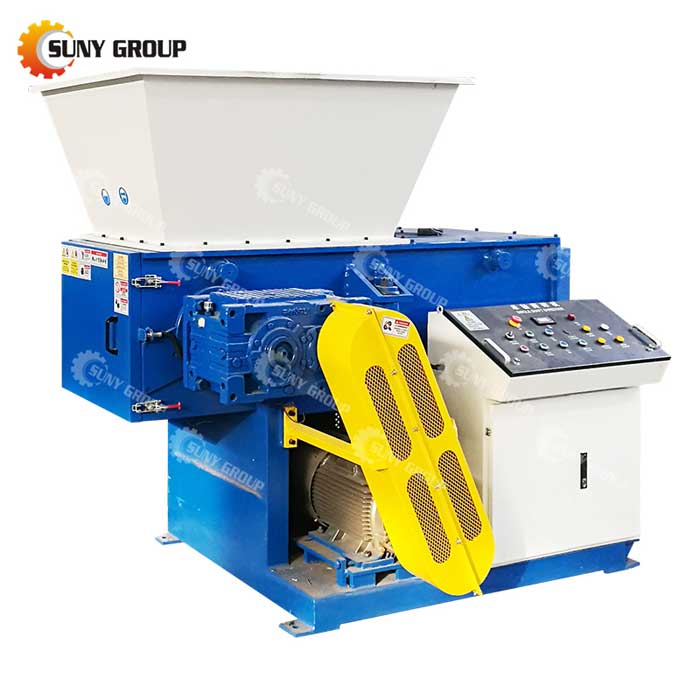

    Single Shaft Shredder Machine

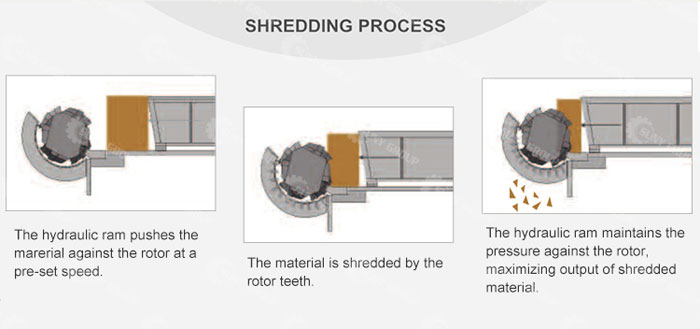

    WORKING PRINCIPLE:

    Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.

    Single Shaft Shredder Machine

    PARAMETERS:

    Model ZY-S600 ZY-S800 ZY-S1000 ZY-S1200 ZY-S1500
    Motor Power (kw) 22 45 55 75 110
    Rotor-knives (pcs) 26+4 36+6 48+6 58 98
    Blade Material Cr12MoV SKDIID2 Cr12MoV SKDII D2 Cr12MoV SKDII D2 Cr12MoV SKDII D2 Cr12MoV SKDII D2
    Rotor Diameter (mm) 260 400 400 500 550
    Rotor Speed (r/min) 75 75 75 80 80
    Cutting Chamber (mm) 600x600 800x800 1000x1000 1200x1200 1500x1500
    Hydraulic Power (kw) 2.2 3 4 5.5 7.5
    Cylinder Stroke (mm) 600 800 1000 1200 1500
    Machine Size (mm) 1800x1600x1850 2200x1780x2100 2500x1850x2300 3500x2000x2400 4800x2300x2400
    Weight (kg) 2200 3700 4500 7000 9800

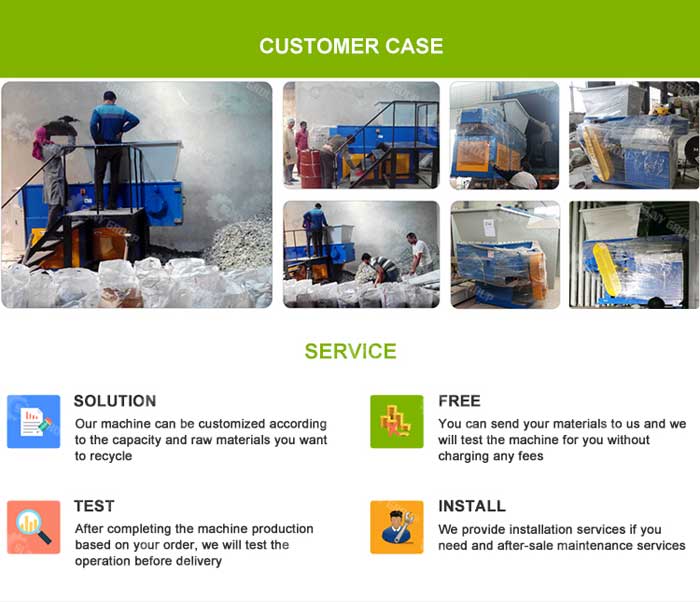

    CUSTOMER WORKSITE:

    Single Shaft Shredder Machine

    SPECIFICATIONS:

    Hammer Crusher
    Hammer Crusher
    Hammer Crusher
