Lead Smelting Cupola Furnace

  • Product Introduction:

 Cupola furnace is a melting device used in foundries that can be used to melt cast lead . The cupola can be made almost any practical size.

Video Description:

  • PRODUCT DESCRIPTION:

    Lead smelting cupola furnace is a melting device used in foundries that can be used to melt cast lead. The cupola can be made almost any practical size. The overall shape is cylindrical and the equipment is arranged vertically, usually supported by four legs.

    cupola furnace

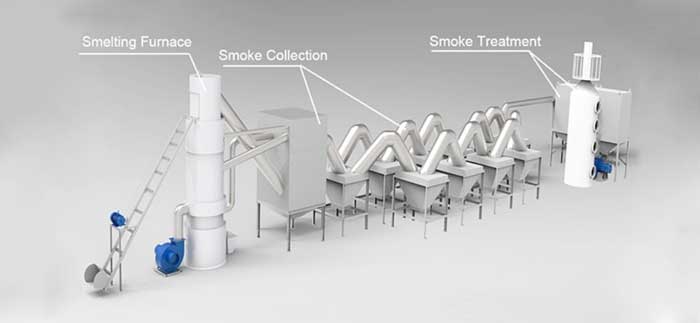

    There is the exhaust gas & dust treatment system installed combined with the cupola furnace, which can keep there is an effecient pollution control system in steady. The composition of waste gas contains: CO2, CO, SO2 and dust.

    APPLICATION:

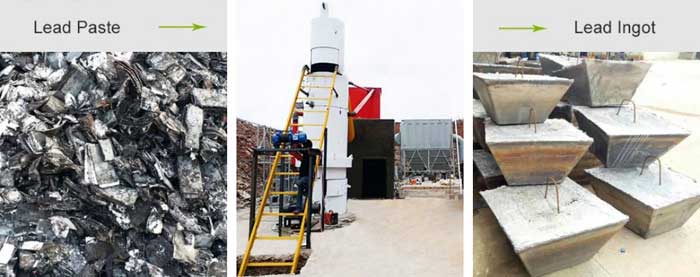

    By the cupola furnace, the lead that get from waste lead-acid battery can be smelted and casted, then it is easier for transporation and sale.

    APPLICATION

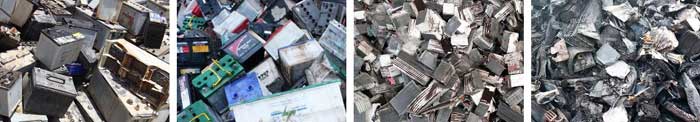

    RAW MATERIALS:

    The lead separated by the Battery Separation Section (automotive battery, truck battery, electric bicycle battery, etc.)

    RAW MATERIALS

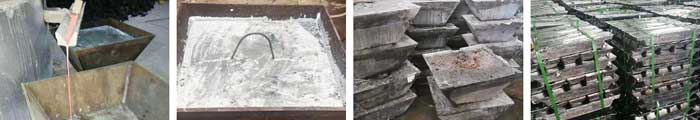

    FINAL PRODUCT:

    The final product is the lead ingot, the lead slag can be sold directly.

    Raw materials are melting in cupola furnace with water cooling system. Lavaflows out from the side hole at lower part of cupola furnace, and there is also the lead slag will output from another exit and be collected by the mould.

    FINAL PRODUCT

    MACHINE FEATURES:

    1. Lead melting cupola furnace can run as your needs, 24 hours running is no problem, Higher output performance than traditional lead melting furnace;

    2. Feeding automatically, lower manpower cost, output continuously, the lead liquid output continuously which is different from the output by batch;

    3. Better safety control system, the system will cut of the power automatically in case of some emergency;

    4. Environmental protection system - the whole line is configured with the air pollution control system.

    TECHNICAL PARAMETERS:

    Model Capacity (24 hours)
    ZYRQ-2 20 ton
    ZYRQ-4 40-50 ton
    ZYRQ-6 60-70 ton
    ZYRQ-8 80-100 ton

    WORKING PERFORMANCE:



    Raw Material Lead Plate Separated From Lead Acid Battery
    Final Product Lead Ingot

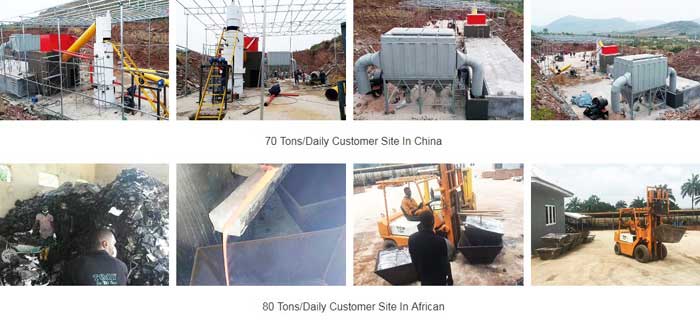

    CUSTOMER WORKSITE:

    CUSTOMER WORKSITE

    RECOMMENDED PRODUCTS:

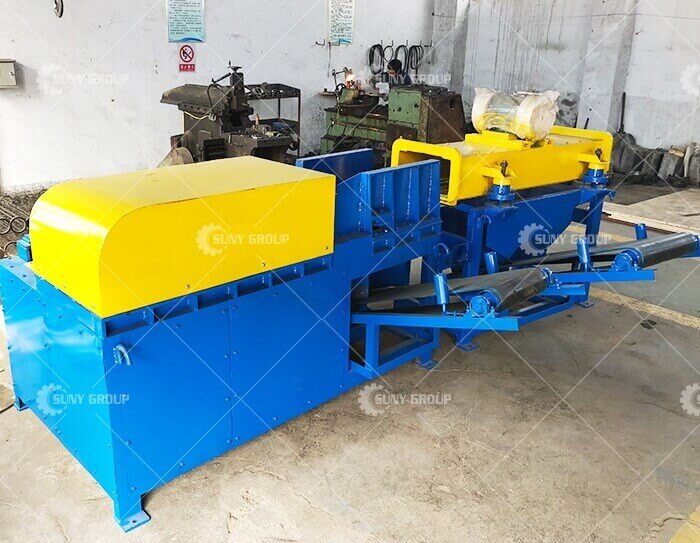

    battery cutter machine

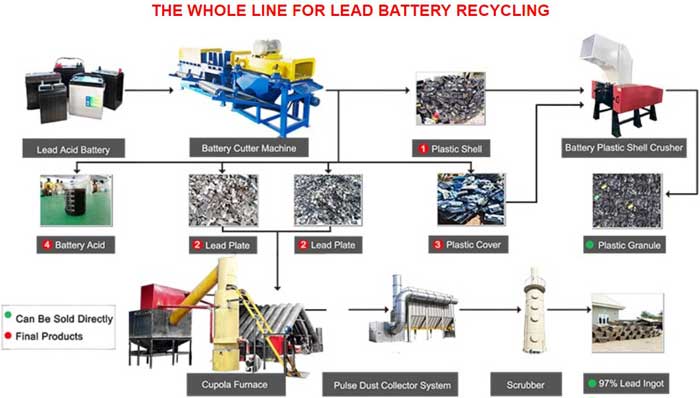

    By lead acid battery cutting machine, lead battery can be firstly separated into two parts: lead plate and plastic shell. Then the next step is lead melting by cupola furnace. The pure lead can be used in all areas of lead industry, including battery manufacturing, lead chemicals and manufactured products.

    lead acid battery cutting machine
