Alternators Staters Hammer Crusher

  • Product Introduction:

 The vertical metal crusher mainly uses the upper hammer structure to break materials by rotating at high speed. In the process of material automatic falling...

Video Description:

  • PRODUCT DESCRIPTION:

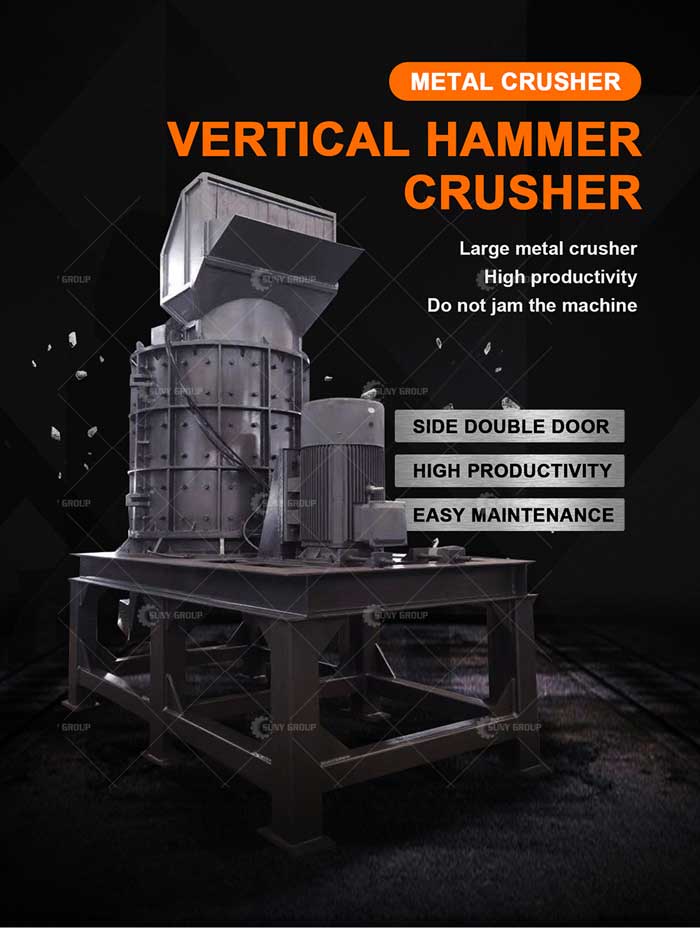

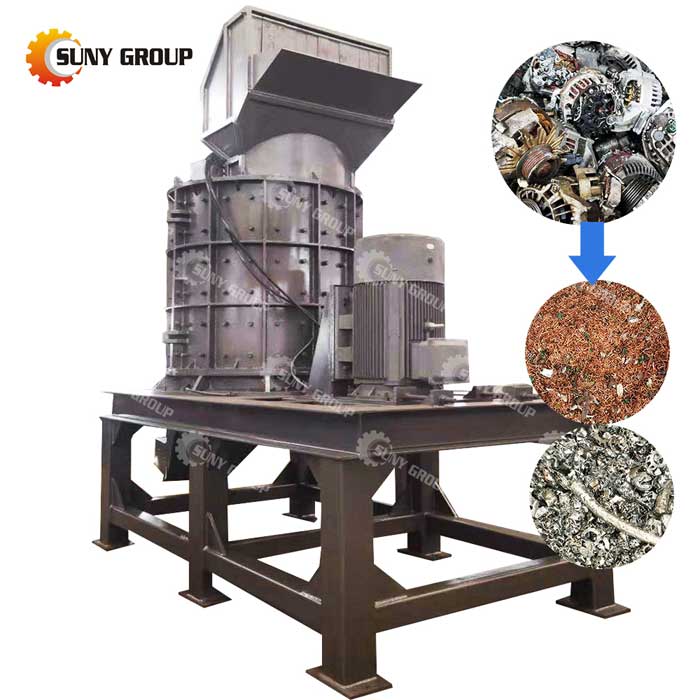

    Hammer Crusher

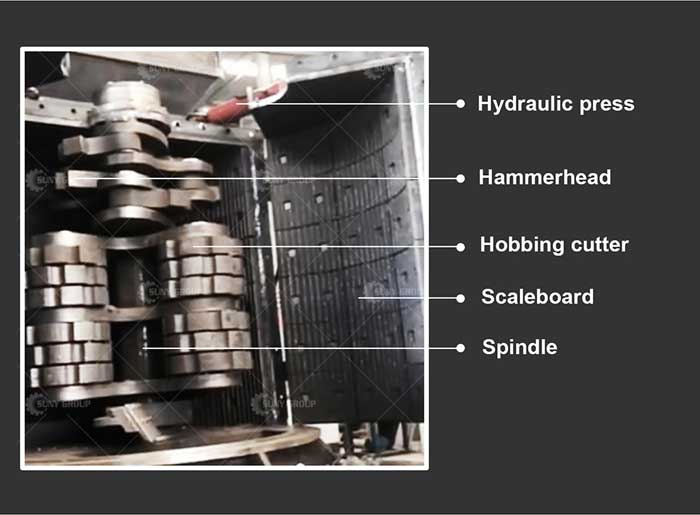

    STRUCTURE:

    The vertical metal crusher mainly uses the upper hammer structure to break materials by rotating at high speed. In the process of material automatic falling, the material is finely crushed and rolled by the gap between the lower hob and the crushing cavity. Meet the discharge requirements. Vertical crusher is characterized by its structure, high crushing speed, high efficiency and easy maintenance.

    Hammer Crusher

    APPLICATION:

    Hammer Crusher
    Hammer Crusher

    PARAMETERS:

    Model ZY1000 ZY1200 ZY1500
    Capacity(kg/h) 800-1000 1500-2000 2000-3000
    Power(kw) 75kw*2 90kw*2 132kw*2
    Spindle speed(rpm) 650 650 672
    Rotating diameter(mm) 1000mm 1500mm 1500mm
    Number of hammers 2pcs 4pcs 2pcs
    Unit weight of hammer head 20kg 25kg 30kg
    Number of Hobs 36pcs 36pcs 36pcs
    Unit weight of hob 40kg 40kg 42kg
    kicking device Active type Active type Active type
    Power of hydraulic station 2.2kw 2.2kw 2.2kw
    Hammer head material High manganese alloy steel High manganese alloy steel High manganese alloy steel
    Equipment weight(tons) 9t 12t 18t
    Equipment size(mm) 1200* 1200*3000 1500* 1500*3200 1800* 1800*3500

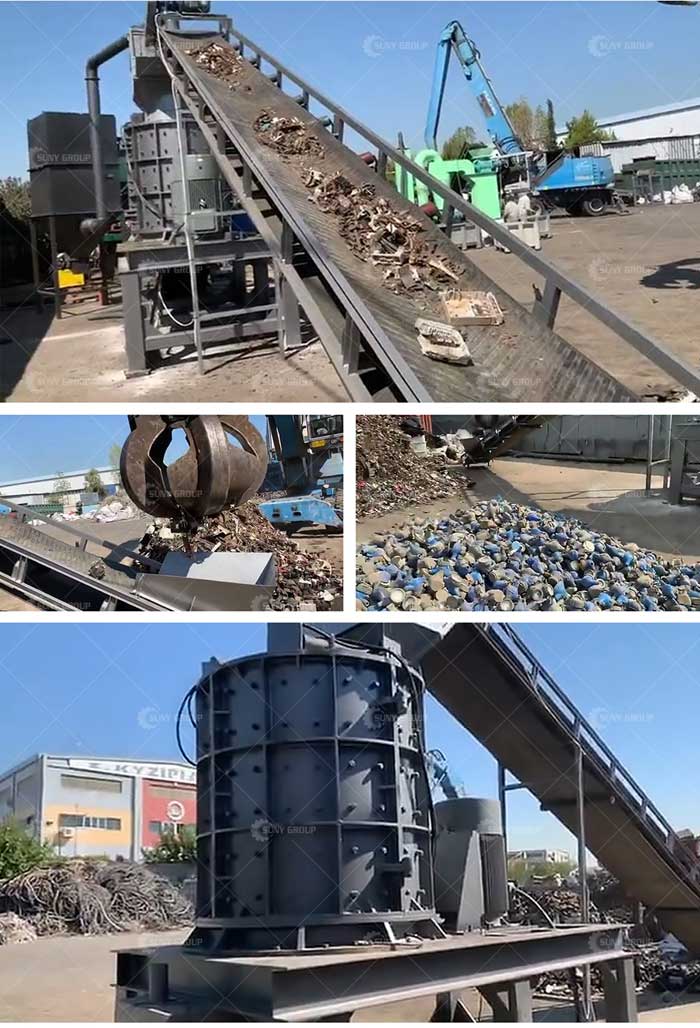

    CUSTOMER WORKSITE:

    Our vertical metal broken gold is sold to many countries and regions around the world. Get unanimous praise from customers. If you want to get accurate equipment configuration and recycling plan acording to your own materials and output, please contact us directly.

    Hammer Crusher

    SPECIFICATIONS:

    Hammer Crusher
    Hammer Crusher
    Hammer Crusher
