Recycling equipment

Solar Panel Frame Removing Recycling Machine

  • Product Introduction:

This equipment is designed to disassemble used solar panels, specifically focusing on removing the aluminum frames, Cost-effective.

Video Description:

  • PRODUCT DESCRIPTION:

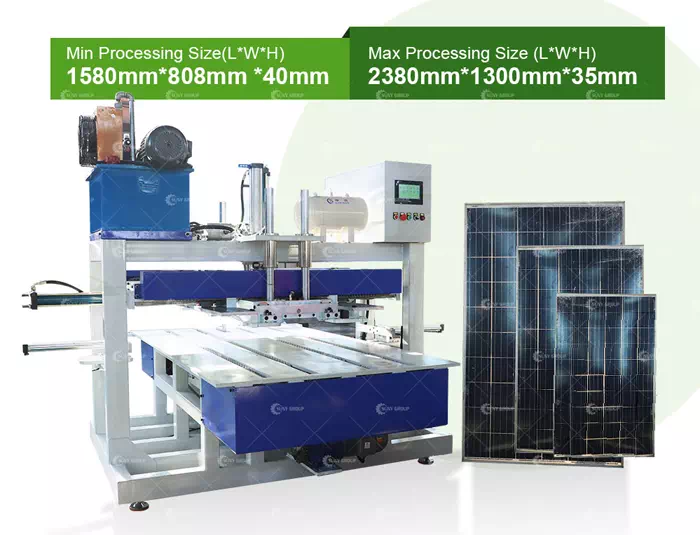

    Solar Panel Frame Removing Machine

    Solar Panel Disassembly Equipment/Line:This equipment is designed to disassemble used solar panels, specifically focusing on removing the aluminum frames. It has the advantages of cost-effective, easy to operate and easy to maintain.

    HOW IT WORKS:

    Raw material and outfeed

    1.Manually place the solar panel on the central platform and start the machine.

    2.The top hydraulic device falls down and presses the solar panel.

    3. The bottom hydraulic device unfolds in all directions and the steel mold dismantles the frame.

    This machine is designed to handle a wide range of PV panel sizes,making it suitable for dismantling aluminum frames from most standard modules on the market.

    Solar Panel Frame Removing Machine

    WORKING STEPS:

    POSITIONING MODE SETUP: Before operation, select the appropriate positioning mode on the touch screen, as the machine is compatible with PV panels of different sizes.

    PRECISION POSITIONING: The PV panel is transported from the rear onto the machine, where it is accurately positioned by the side positioning units.

    SIMULTANEOUS REMOVAL: The disassembly unit descends to fix the panel while removing the aluminum frame and junction box.

    MULTIPLE APPLICATIONS: The mechanism resets and the panel is conveyed to the glass separation unit.

    ADVANTAGES:

    1.Semi-automatic operation, save labor, save cost, easy to operate, easy to maintain.

    2.Cost-effective, fast dismantling speed.

    3.Customized production is available.

    TECHNICAL PARAMETER:

    ModelZY-SD500
    Design pressure1-2T
    Motor (KW)5.5kw
    Voltage200v/60Hz
    Oil pump2*1
    Hydraulic stroke length150mm
    Control methodFully automatic/manual operation
    Design times6-8times/min
    Overall size1.9mx1.7mx1.7m
    Total Weight1 T

    Applicable solar panel size: the frame removal mold can be customized to fit different size solar panels.

    Welcome to our Factory
    Welcome to our Factory
    Welcome to our Factory

    RELATED MACHINERY:

    Solar Panel Recycling Machine

    • Product Introduction:

    Solar PV recycling machines recover valuable materials like copper, silver, silicon, plastic, and glass for reuse.
