Municipal Solid Wast Recycling Plant

Municipal solid waste recycling plant is mechanical equipment specially designed to process and recycle municipal domestic garbage, to improve the efficiency of garbage recycling, reduce the waste of resources, and promote environmental protection. Its primary function is to separate recyclables, such as paper, plastic, metal, glass, etc., from non-recyclable garbage in municipal domestic waste for reuse or disposal.

1.Household solid waste comes from homes and public areas and includes garbage from residential buildings, dumpsters, streets, marine areas, and country parks.

2.Commercial solid waste comes from places such as stores, restaurants, hotels, office buildings, and markets in private residential areas.

3.Industrial solid waste is generated by all types of industrial activities but does not include construction and demolition waste, chemical waste, or other special waste.

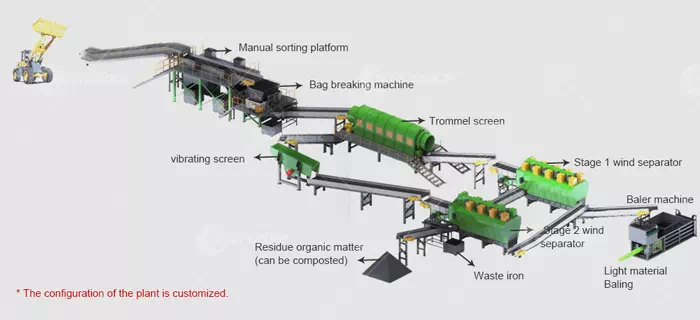

The shovel will be sent to the life of the garbage chain conveyor, chain conveyor through the homogenizing device uniformly to the material conveyor to the artificial sorting platform, after artificial sorting interference, conveyed to the broken bag machine, the material crushed, crushed material by the magnetic separator to the metal sorted out, the remaining material to the tumbler sieve, tumbler screen after the screening of the residue of dirt and other materials by the under-screen conveyor to the under-screen material stacking area, waiting for the back-end processing After the tumbler sieve, the upper material is transported to the wind separator by the conveyor for sorting, the light material is transported to the baler by the upper material conveyor for baling, and the under-screen material (heavy material) is transported to the under-screen material pile area by the under-screen material conveyor for stacking, waiting for after-sequence processing.

CHAIN SCRAPER CONVEYOR: During the working process, the conveyor can uniformly and continuously feed blocky and granular materials into the crushing device.

MANUAL SORTING PLATFORM: The manual sorting platform is controlled by a frequency converter, and several sorting stations are set on both sides, each station corresponding to a garbage collection hopper. Such as glass, textiles, wood, waste paper, and aluminum, selected by hand.

BAG BREAKING MACHINE: Effectively crushing the packaging materials and facilitating the screening effect.

TROMMEL SCREEN: The drum screen controls the garbage sorting through the particle size, and the sorting accuracy is high. The sieve aperture on each section of the drum sieve is the same.

WIND SEPARATOR: The wind separator is based on the principle of aerodynamics, using air as the separation medium, and sorting the solid wastes according to the density under the action of airflow.

Customized according to different materials and requirements.
