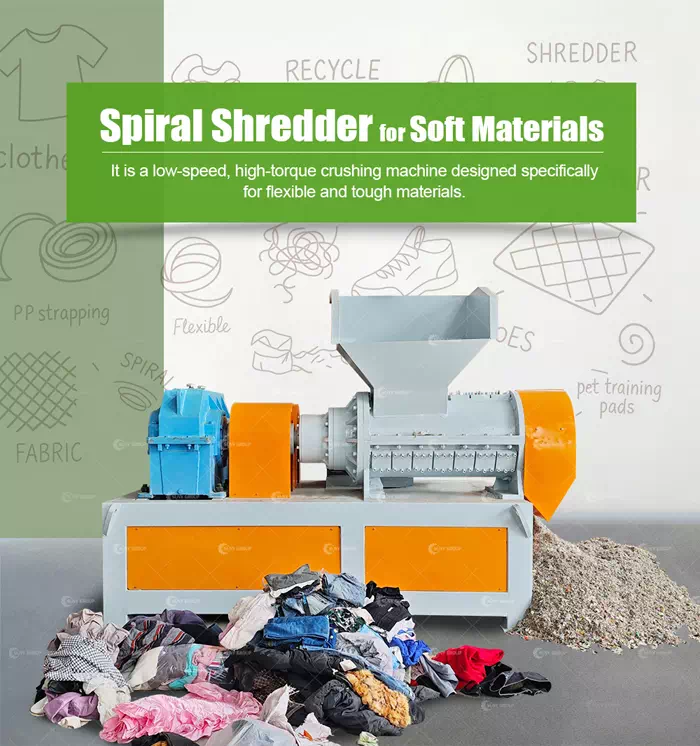

Spiral Shredder for Soft Material Recycling

This spiral shredder machine is designed for processing soft materials, such as old clothes, plastic film, fabric trimmings, and so on. With a compact structure and smooth operation, it is ideal for recycling all kinds of light materials.

It is suitable for recycling stations, solid waste treatment centers, renewable resources utilization enterprises, etc. It mainly deals with light soft waste that is easy to wound and compress, and it is especially suitable for dealing with recycled materials that are large in volume but low in density.

The equipment adopts a unique spiral feeding and cutting system, the material is efficiently drawn to the cutting tool area under the propulsion of the spiral and is rapidly torn and decomposed, effectively preventing jamming and entanglement phenomenon.

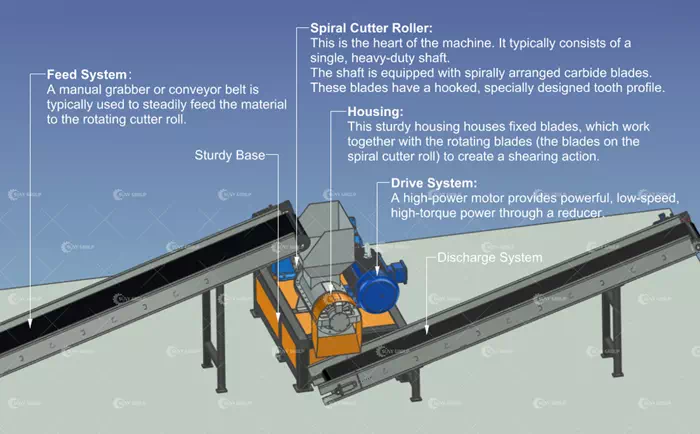

Feed System: A manual grabber or conveyor belt is typically used to steadily feed the material to the rotating cutter roll.

Spiral Cutter Roller: This is the heart of the machine. It typically consists of a single, heavy-duty shaft. The shaft is equipped with spirally arranged carbide blades. These blades have a hooked, specially designed tooth profile.

Housing: This sturdy housing houses fixed blades, which work together with the rotating blades (the blades on the spiral cutter roll) to create a shearing action.

Drive System: A high-power motor provides powerful, low-speed, high-torque power through a reducer.

By replacing scroons with difforent mesh sizes or adjusting the cutter chamber length, the output size can be flexibly controlled. The machine supports three typical output size ranges:

Option 1:=10mm (min)

Option 2: =30mm

Option 3: ≈50mm (max)

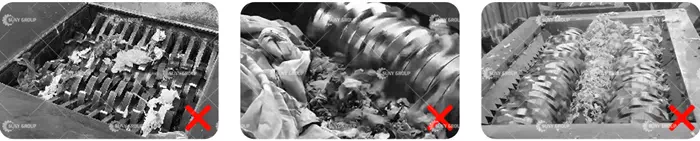

ls it impossible to precisely control the discharge size?

Double Shaft Shredder: Uneven discharge, material wrapping around blades, damaging equipment.

Single Shaft Shredder: Not suitable for high humidity materials, material wrapping around blades, low efficiency.

Double Roller Shredder: High cost, material piling up in the middle of Machine.Cannot shred small size.

Compared with the traditional shredder, Spiral shredder can stably output consistent particle size, continuous and smooth operation, low maintenance frequency, especially suitable for the continuous processing of highly elastic and easily deformable materials, and enhance recycling efficiency.

Powerful Shredding Capability: Designed with a low-speed, high-torque spiral rotor and hook-shaped, specially toothed alloy blades, it easily handles bulky, tough, and flexible solid waste.

Anti-Tangling: Its specially designed spiral blades securely grip and cut entangling materials like fabrics, ropes, and fishing nets-minimizing downtime and ensuring uninterrupted operation.

Exceptional Volume Reduction: Combining shearing,tearing, and compression, it significantly reduces the volume of materials like plastic film and packaging bags--cutting logistics costs and improving processing efficiency.

PLC Control: Low Noise & Low Dust,lts low-speed mechanism ensures quieter operation and less dust generation, making it ideal for environmentally regulated work environments.

ROBUST & RELIABLE: Equipped with a powerful motor, reducer, and heavy-duty frame, the shredder is built for continuous, high-load operation with reliable long-term performance and manageable maintenance.
