Paper Plastic Separator Machine

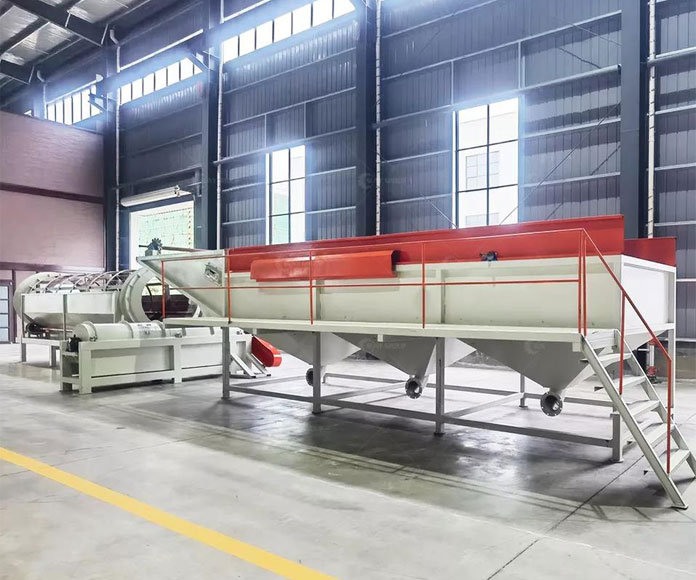

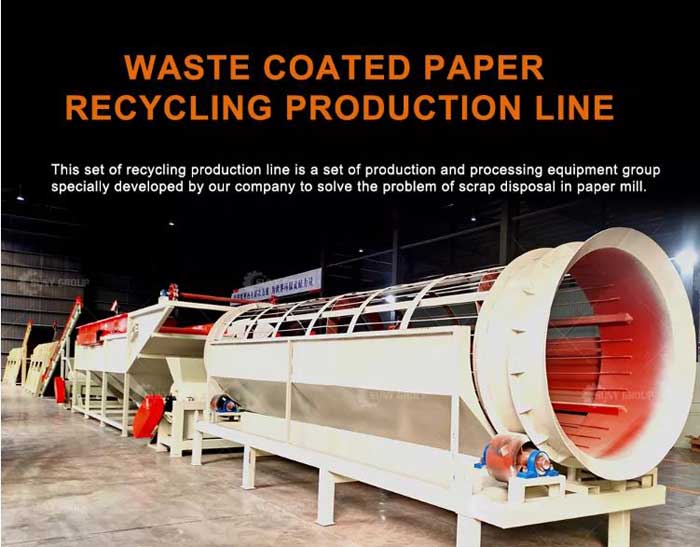

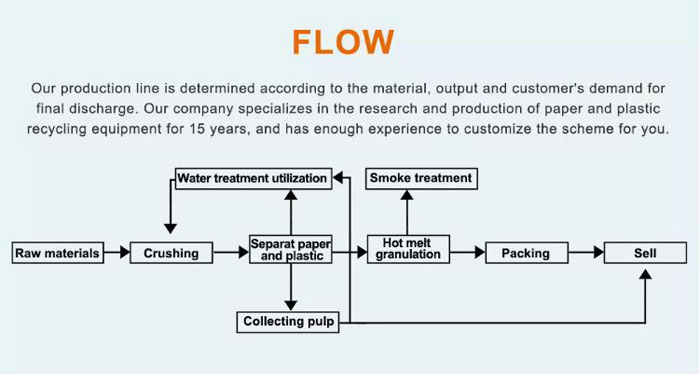

Paper Plastic Separator recycling production line is a set of production and processing equipment group specially developed by our company to solve the problem of scrap disposal in paper mill.

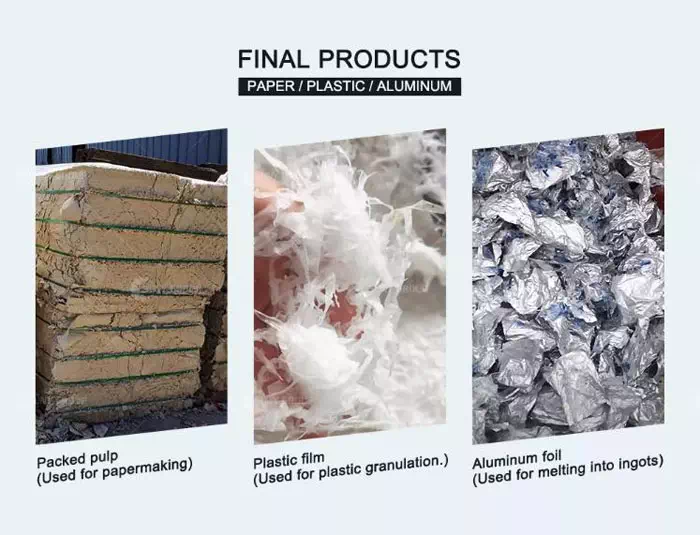

It can separate the plastic or aluminum in the waste paper from the paper, and recycle it to the maximum extent.

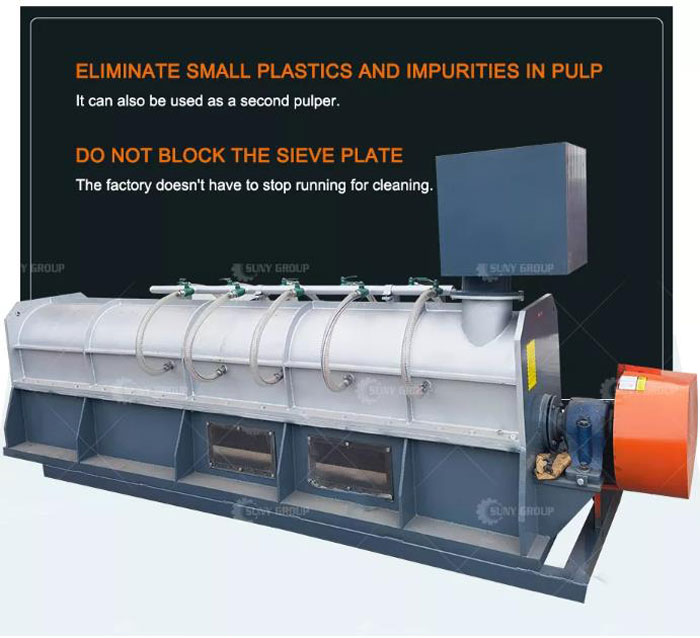

ln the pulping of waste paper, because of the different paper quality of waste paper, there is a large amount of slag.This machine can remove light and heavy sundries and decompose small pieces of paperin fibers, without blocking the sieve plate, and hard sundries will not hurt the sieve plate.The factory doesnot have to stop running for cleaning frequently, and it can also be used as a second pulping machine.lt is mainly used for sorting tail pulp after fiber separator and pressure screen; The treated and sortedslurry is directly returned to the fiber separator or the slurry pool in front of the pressure screen for reuse.After sortingThe tailings do not contain fiber, which meets the emission requirements of environmentalprotection.

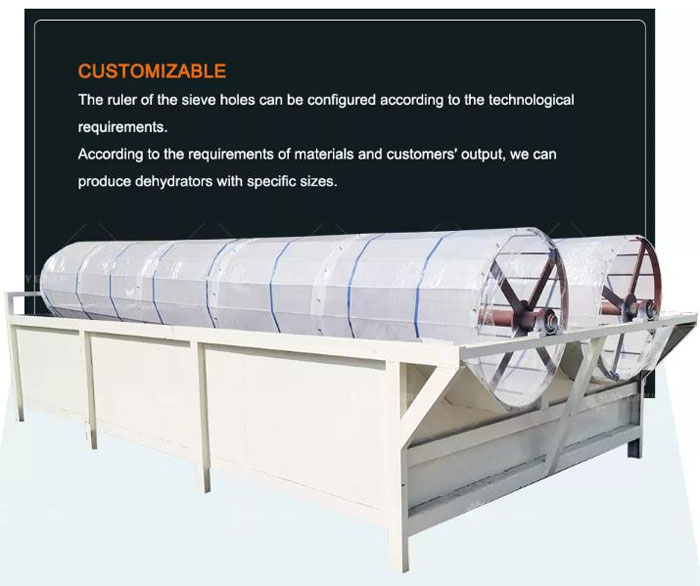

The basic working principle of the pulp dehydator is: the particles rotate to a certain height with the drum,are thrown and fall by gravity, and are filtered through the screen to form a sieve. The roller screen is shaftdriven, and the screen is steel wire woven net or high toughness nylon woven net. The ruler of the sieveholes can be configured according to the technological requirements.

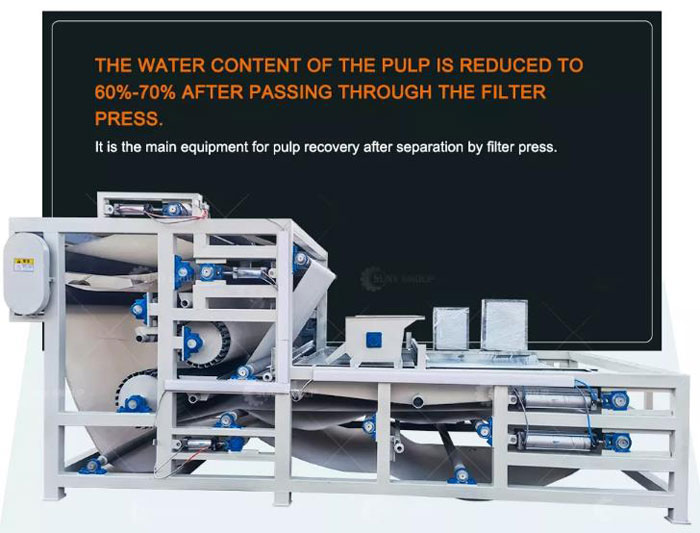

Pulp filter press is a mechanical equipment designed for the recycling of pulp separated by paper-plasticseparator. The pulp filter press uses the motor to drive the spindle to run and drive the polyester blanket. The pulp istransported to the filter press by the pump and evenly flows onto the polyester blanket. After being drivenby the polyester blanket, it is squeezed between two layers of polyester blankets, and then squeezed andcompacted by multiple pressing rollers, thus making cardboard for secondary utilization. The filtered clearwater can be pumped by a water pump for recycling, thus reducing emissions and saving resources.
