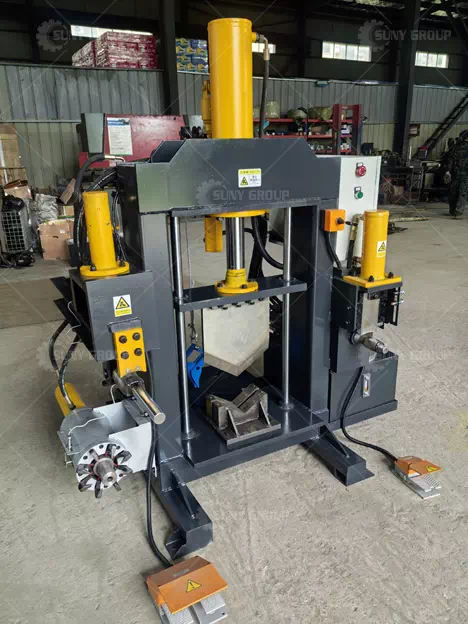

5-in-1 Motor Copper Removing Machine | Scrap Motor Recycling Equipment
5-in-1 Motor Copper Removing Machine depends on efficient copper-steel separation; integrated machines cut labor and boost recovery and productivity.
1. Integrated 5-in-1 Design for Streamlined Processing
This machine features a 5-in-1 integrated design that combines multiple dismantling processes into a single hydraulic unit. Its modular structure allows continuous operation from feeding to copper extraction, reducing manual intervention and equipment switching.
Key functions include: a cutting unit for quickly trimming motor wires; a central splitting section for stator dismantling; a housing cutting module for breaking motor shells; a claw system for gripping copper wires; a pushing rod for ejecting internal copper; and a pulling mechanism for final wire extraction. The workflow is compact and efficient, suitable for processing motors of various sizes.
This integrated approach reduces labor dependency, improves consistency, and shortens processing time per motor, making it ideal for batch operations.
2. Hydraulic System for Stable and Efficient Operation
The machine is driven by a hydraulic system, ensuring stable performance and controllable output force. With a system pressure of 25 MPa and a cutting force of 30 tons, it can effectively handle most motor dismantling tasks.
In operation, different modules perform specific tasks:
Wire cutting: short stroke, high-frequency cutting for fast wire removal;
Splitting: cylinder-driven dismantling of stator and housing;
Copper extraction: combined pushing and pulling mechanisms for complete copper removal;
For motors with thick insulation or tight structures, the machine can be used with a heating process to improve copper separation efficiency. Overall, the design balances performance, adaptability, and durability.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 380V / 50Hz |
| Motor Power | 5.5 kW |
| System Pressure | 25 MPa |
| Oil Tank Capacity | 80 L |
| Control Method | Electric Control |
| Cutting Force | 30 Tons |
| Cylinder Stroke | 400 mm |
| Blade Size | 250 × 320 mm |
| Internal Width | 450 mm |
| Cutting Stroke | 100 mm |
| Gripping Range | Inner φ50 – Outer φ120 mm |
| Pushing Range | Inner φ50 – Outer φ300 mm |
| Pushing Stroke | 200 mm |
| Pulling Range | Outer φ300 – φ600 mm (heating required for thick insulation) |
| Pulling Stroke | 600 mm |
| Dimensions | 1400 × 1300 × 1700 mm |
| Weight | 650 kg |
Overall, this 5-in-1 motor copper removing machine simplifies dismantling with integrated hydraulic design, boosts recovery efficiency, reduces labor, and offers high cost performance for scalable recycling operations.
