SUNY GROUP MASK MAKING MACHINE,SUNY GROUP FACE MASK MACHINE

Time:2020-05-11 12:15 Author:Suny Group

Suny Group's newly developed fully automatic high-speed flat earband mask production line includes automatic raw material delivery, automatic delivery, cutting of the nose bridge, mask edge welding, folding, ultrasonic fusion, molding, cutting and other full-process automation to complete the raw material from the coil To the entire production process of the finished mask.

The main mask machine products include:

1.Face mask making machine(1+1).

Face mask making machine(1+1)
Face mask making machine(1+1)

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; Bridge of nose strip whole roll traction unroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, it is transported to the flat belt line for collection. Complete line include 1 set mask body making machine and 1 sets ear loop automatic welding machine.

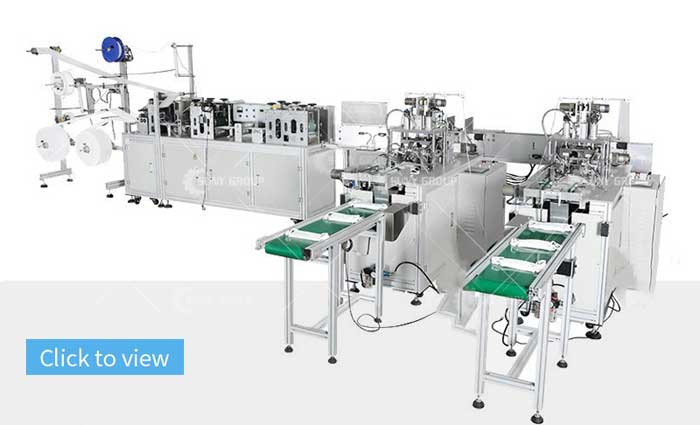

2.Face mask making machine(1+2).

Face mask making machine(1+2)
Face mask making machine(1+2)

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing, cutting the finished products automatically, complete line include 1 set mask making machine and 2 sets automatic ear loop welding machine.

The face mask making machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; Bridge of nose strip whole roll traction unroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, it is transported to the flat belt line for collection. Complete line include 1 set mask body making machine and 2 sets ear loop automatic welding machine.

3.N95 Kn95 Face mask making machine

N95 Kn95 Face mask making machine
N95 Kn95 Face mask making machine

【 PRODUCT NUMBER 】 ZYN95-60

【 VOLTAGE 】 220VAC+5%

【PRODUCT NAME】Automatic folding medical protective mask (N95) production line

【POWER】10KW

【SIZE】 7500x1400x2000mm

【YIELD】 35 - 45pcs / min

【WEIGHT】 1500kg
