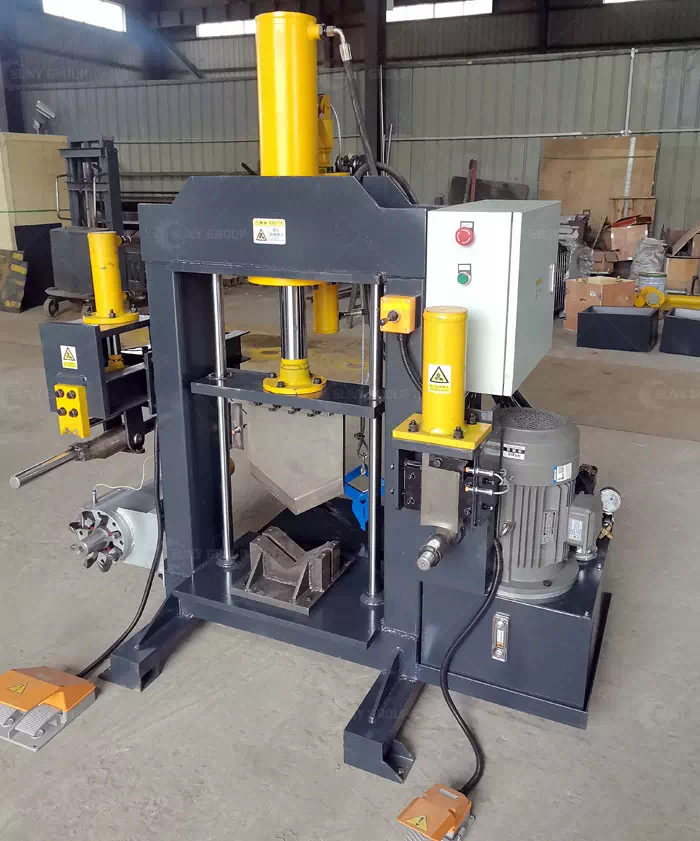

5 in 1 Motor Copper Extraction Machine for Scrap Motor Recycling
The 5-in-1 Motor Copper Extraction Machine is a high-efficiency recycling solution for scrap motors, integrating casing cutting, stator splitting, and multiple copper extraction methods. It can quickly and completely separate high-quality copper wires from motor stators.
Industrial-Grade Power and Key Technical Specifications
Equipped with a 5.5 kW motor operating at 380V/50Hz, the system features a hydraulic working pressure of up to 25 MPa and an 80 L high-capacity oil tank. The hydraulic cutting force reaches 30 tons, paired with a 400 mm cylinder stroke, providing strong demolition power. The machine measures 1400×1300×1700 mm, weighs 650 kg, and uses a centralized electric control system to ensure stable operation under continuous high-load industrial conditions.
Stepwise Cutting Process and Multi-Track Extraction Design
The machine’s core advantage lies in its modular blades and multi-track extraction system. During operation, a 250×320 mm working blade performs stepwise cutting: a small blade opens the motor casing, followed by a large blade to split the stator in half, exposing the internal copper wires. During copper extraction, three mechanical methods are available according to stator size:
Gripping: For compact stators with inner diameters φ50mm to outer diameters φ120mm.
Pushing: For medium stators with inner diameters φ50mm to outer diameters φ300mm, stroke 200mm.
Pulling: For large stators with outer diameters φ300mm to φ600mm, stroke 600mm. Heating improves extraction for stators with thick insulation. The 450 mm working width ensures compatibility with a wide range of scrap motors.
Modular Collaboration Enhances Real-World Recycling Efficiency
Traditional motor recycling relies heavily on manual labor or single-function equipment, often leading to low efficiency and high copper loss. This machine integrates “casing cutting, stator splitting, and multi-dimensional mechanical extraction” on a single platform. Precise stroke control (e.g., 100 mm cutting stroke) allows mechanical force to act accurately on connection points, greatly reducing labor intensity and avoiding wire breakage or residue caused by violent dismantling. This data-driven design significantly improves recycled copper purity and economic returns.
With solid technical specifications and a multi-track mechanical design, the 5-in-1 extraction machine offers a highly feasible industrial solution for automated, high-efficiency scrap motor recycling. For more details and pricing, please contact us anytime.
