Principle and installation of dry copper wire recycling machine

Time:2020-01-08 15:18 Author:Suny Group

Each device of the copper meter machine has been tested before leaving the factory. The wiring of the distribution box and each machine is fully equipped. After the equipment is shipped to the customer site, the customer only needs to introduce the prepared power cord with the corresponding wire number into the distribution box. Just fine.

When debugging the dry copper wire recycling machine, the input volume should be controlled at about 30% of the output of the machine, so as to avoid the accumulation of tail machine material caused by the untimely adjustment of the single machine. The initial value of the speed and frequency of the lower blower inverter is adjusted to 35-40Hz, and the value is increased or decreased according to the sorting situation. The initial value of the speed and frequency of the vibration sorting motor inverter is adjusted to 28-35Hz, and the value is increased or decreased according to the sorting situation. For the first time, the value of the front and rear dust extraction air volume is adjusted to the position where the pointer is located in the middle of the adjustment range, and the value is increased or decreased according to the discharge situation.

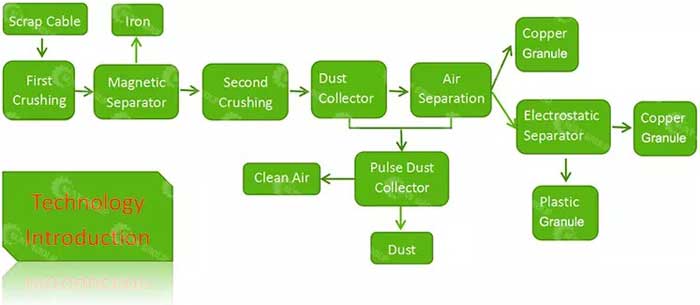

copper wire recycling machine process description
copper wire recycling machine process description

The working principle of the dry copper wire recycling machine: After the crushing of the raw materials, the size of the crushed material is controlled by the hole diameter of the crusher screen. Above, adjust the sorting effect by setting the parameters of each machine.

copper wire recycling machine installation matters:

1. Before starting the equipment, check the various moving parts of the machine to avoid objects falling on the moving parts during transportation.

2. Turn off the power before checking and turn each moving part by hand, pay attention to whether there is a stall phenomenon, and check the cause in time if there is a stall.

3. Check whether the bolts of the main components are loose during transportation. If loose is found, tighten them immediately.

4. Check the equipment thoroughly to confirm that there are no problems before turning on the power.

5. Turn on a single machine after power-on, and pay attention to observe whether the rotation of the motor is consistent with the marked rotation. If there is an inconsistency, cut off the power supply in time to adjust the wiring sequence. All motors can be started online after they are in the same direction as the logo.

6. The equipment should be started for 20-30 minutes without load. Pay attention to observe the operation of each machine and observe whether the belt of the feeding conveyor has runaway. If deviation occurs, adjust it in time and wait for all machines to run without abnormality Commissioning.

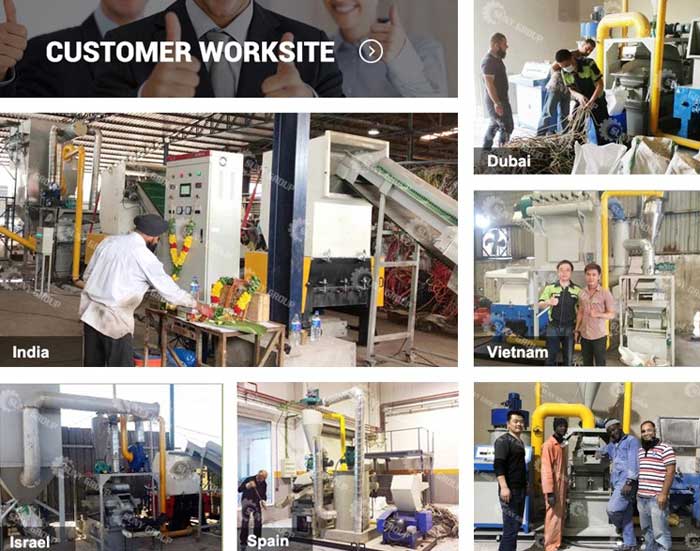

 copper wire recycling machine customer site
copper wire recycling machine customer site

After successful commissioning of the dry copper wire recycling machine, trial production can be started. During the first trial production, the input volume should be controlled at about 50%-60% of the output of the machine. After continuous production for 3-5 hours, the output will be gradually increased. To increase the output by 10% every 3 to 5 hours, do not load at full load at the beginning, because each machine needs a running-in process.
