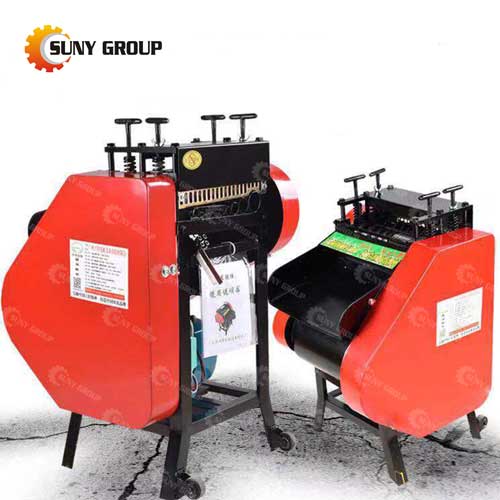

Introduction to Product Manual of Waste Cable Stripping Machine

Time:2020-07-23 14:23 Author:Suny Group

Electric Wire Stripper Manufacturer

Electric Wire Stripper Manufacturer

1. Turn on the motor to check whether the operation is normal. When feeding, check the diameter of the outer rubber-plastic cable of each file, and feed the materials one by one.

2. In order to make the blade durable, the connector of the rubber-plastic cable should be cut off when feeding, so as to avoid the blade chipping.

3. If the material is too deep and broken after the feeding, pay attention to the following points:

①Adjust the feed stop, that is, the tightness of the M12 screw pressure on both sides of the blade shaft;

②Check if the position is misplaced when feeding

③Whether the blade is newly replaced, and whether the cutting edge is too sharp, use special oilstone to trim it slightly until it is moderate.

4. If the rubber and plastic have been peeled after the feed is out, but the copper wire cannot be spit out. There are mainly 4 points:

①The knurling of the upper shaft is too deep, the upper shaft should be ground with a special oil stone, but it cannot be ground too much, too much grinding will easily cause the oily cable to be difficult to drive;

② Whether the spring pressure is too loose, adjust the pressure tightly, and stop vomiting;

③The wire diameter is too small, or the gap between the upper and lower shafts is too large, the gap between the two shafts should be adjusted to 0.4-0.6MM;

④The processed rubber-plastic cable has heated up, and the copper wall and iron wall wire cannot be spit out

5. If after feeding the material, the pressure gear cannot drive the cable and the material stays in the middle, the following situations will occur:

① Check whether there is any slack in each gear belt;

②Check whether the spring pressure on both sides of the pressure gear is too tight and there is no top force, the pressure should be relaxed;

③The cable is too oily and causes the two shafts to slip. The two shafts should be wiped dry frequently (when the machine is running, please pay attention to safety)
