How to recycle the copper wire in the stator of a waste motor?

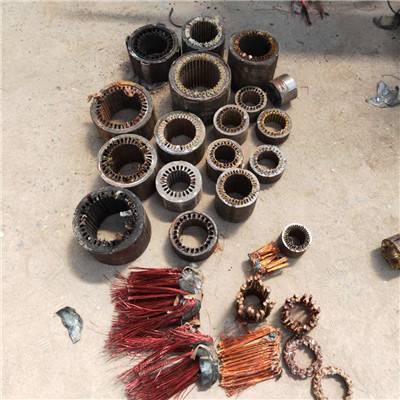

The motor stator is the stationary part of the motor. The stator consists of three parts: a stator core, a stator winding and a base. Among them, the stator winding refers to the winding installed on the stator, that is, the copper wire wound on the stator. Depending on the specifications and parameters of the motor stator, different amounts of copper wires are contained. A large number of waste motors are generated every year. In the process of recycling waste motors, the copper wire in the stator of the motor is the most important. So how to recycle the copper wires in the stator of the waste motor?
We can use a dedicated motor stator disassembly and recycling machine, which is a high-efficiency equipment for recycling copper wires in the motor stator. Generally, it is divided into a copper chopping machine and a copper drawing machine. When the customer dismantles a small amount and saves costs The copper chopping machine and the copper drawing machine use the same hydraulic station. Compared with the separate copper cutting machine and the copper drawing machine, this equipment can save costs. However, the copper cutting and drawing processes cannot work at the same time and must be tied together. Therefore, the space is limited. The dismantling and motor integrated machine adopts semi-automatic operation. One piece of equipment can be dismantled manually by about ten people. It is convenient to operate, stable in performance, time-saving and labor-saving; the working process does not damage the stator steel sheet, and improves the stator copper wire and stator steel sheet. The recycling rate is high, which satisfies the processing requirements for the recycling of scrapped motor to a large extent. For example: For the Y18.5 two-pole stator, there is no need to burn the copper wire, and all the copper wires can be pulled out by just pulling the copper wire three times, and the steel sheet is guaranteed to be unchanged, and the output can reach about 1 kilogram in four hours!
Commissioning and operation of the motor stator disassembly recovery machine:
1. Start the main motor, turn the FM potentiometer to start the motor, check whether the direction of the motor is consistent with the direction required by the machine, and let the machine run for 30 minutes to see whether the machine is running normally, if there is any abnormal noise, if there is any abnormal noise Then stop for inspection and adjustment.
2. Jog the foot switch to see if the jog operation of the machine is appropriate.
3. Start the take-up motor, adjust the torque controller knob to make the take-up torque motor rotate, check whether the take-up operation is normal, see whether the motor fan rotation direction is correct (the fan is reversed and the main motor is easily burned), adjust the wire arranging device, Add lubricating oil.
4. The lead width of the light-bar cable and the speed of the cable-reel should be adjusted according to the inner width of the take-up reel, and the left and right stoppers on the guide bar should be adjusted to meet the requirements of the inner width of the reel. According to the size of the wire diameter, adjust the gear handle of the dial on the wire arranging device. The numbers from 1 to 10 indicate the distance of each roll of the light bar.
5. When the wire is drawn by the wire drawing tower wheel, different lubricating fluids should be selected according to different materials. Alkaline solution is used for drawing copper wire, and oily solution is used for drawing aluminum wire and aluminum-magnesium alloy wire. After the drawing material is selected, the copper wire drawing machine adopts self-splashing or spraying lubrication. If spraying lubrication is adopted, the user will add inlet and outlet pipes and delivery pumps. The user arranges the location of the wire drawing machine, the pipeline circuit and the power supply circuit according to the workshop situation.
6. The drawing machine should be equipped with drawing die according to the diameter of the wire, the material of the wire and the configuration of the lubricating solution. The basic configuration die for drawing copper wire from 3mm to 1mm is shown in the table below. According to the diameter of the drawn wire, the mold of the die table should be adjusted to achieve the purpose of the wire diameter required by the user.
The above is a detailed introduction to the recycling of waste motor stator copper wires. The recycling of waste motors can make full use of the copper wires inside. Copper is a non-renewable resource and has very good economic value. At the same time, it can also avoid pollution to the environment. If you need to know more, please feel free to contact us.
