Copper Small to Big Wire Cable Recycling Machine
This is a Copper Small to Big Wire Cable Recycling Machine designed for small to medium-scale recycling operations. Through pre-crushing, conveying, and fine separation, it efficiently separates copper from plastic in mixed waste cables, achieving high-purity recovery and directly enhancing material utilisation and recycling returns.
1. System Structure and Workflow
This copper wire recycling system comprises three core modules—a pre-shredder, a belt conveyor, and a copper wire pelletiser—forming a continuous processing line. Raw materials (such as telecommunications cables, automotive wiring harnesses, and domestic Romex cables) require no complex pre-treatment and can be fed directly into the pre-shredder hopper. The pre-shredder initially cuts through tangled or oversized cables, thereby avoiding the efficiency losses and safety risks associated with manual sorting. Subsequently, the material is conveyed steadily via the conveyor to the granulator for secondary crushing and separation, ultimately achieving effective separation of copper and plastic.
The entire line features a compact design with a small footprint, making it suitable for factory environments with limited space, whilst also reducing the complexity of equipment layout and installation.
2. Key Configuration and Performance Advantages

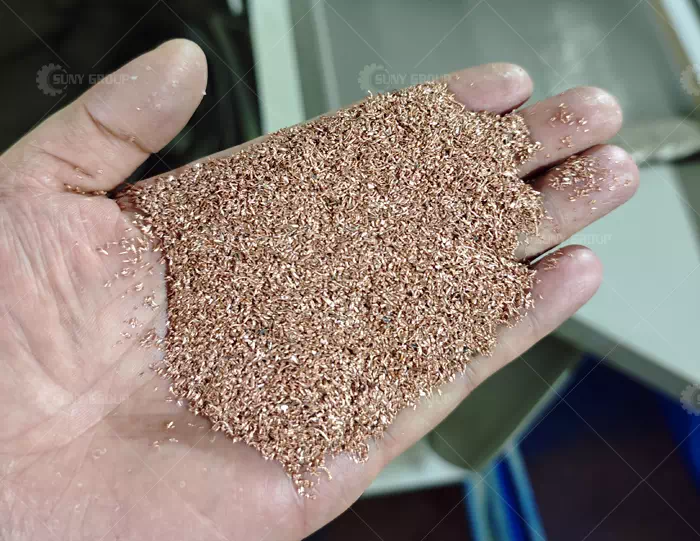

The core of the equipment lies in its stable separation system and meticulous design. Through optimised airflow separation and screening structures, the purity of copper particles can reach over 99%, meeting recycling standards. The system is equipped with a cyclone dust collector, which effectively captures dust and fibrous impurities, reducing environmental pollution and lowering maintenance frequency.
In terms of safety, the entire line is equipped with comprehensive protective measures, including emergency stop functions and an enclosed structure, ensuring operator safety. Even operators with limited experience can quickly familiarise themselves with the operational logic of the entire system, enabling single-person operation.
3. Technical Specifications and Application Scope
This series offers multiple models to accommodate varying processing capacity requirements:
CR-200: Power 20 kW, capacity 100–200 kg/h, dimensions approx. 1.8 × 1.8 × 2.5 m
CR-300: Power 55 kW, capacity 200–300 kg/h, dimensions approx. 4.5 × 2.5 × 4 m
CR-500: Power 105 kW, capacity 400–500 kg/h, dimensions approx. 12 × 5 × 4.5 m
CR-1000: Power 195 kW, capacity approx. 800–1000 kg/h, dimensions approx. 20 × 10 × 4.5 m
The equipment is suitable for all types of scrap cables with a diameter of less than approximately 14 mm (9/16 inch), including automotive wiring harnesses, electronic wires, and telecommunications cables. It should be noted that different cable structures (such as multilayer insulation or composite materials) may affect the actual processing results.
Overall, this type of compact copper wire pelletising system strikes a good balance between efficiency, purity, and ease of operation, making it particularly suitable for companies wishing to enter the copper wire recycling industry quickly or to improve the efficiency of their existing production lines.
