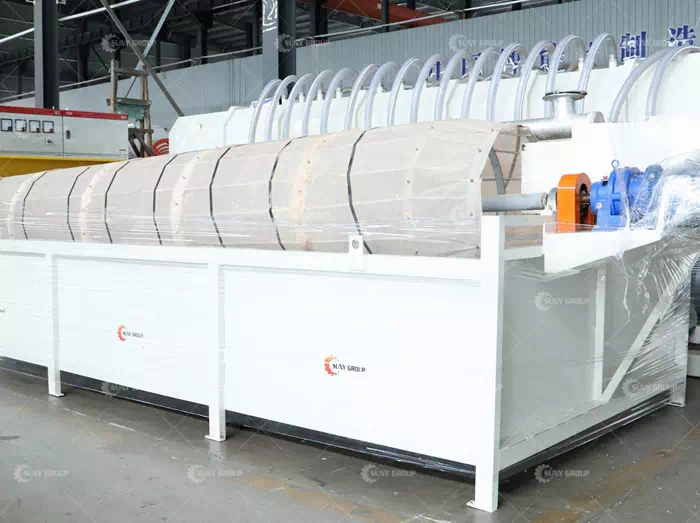

Equipment for Separation and Recycling of Poly-coated Paper Cups
Equipment for the recycling of polyester-coated paper cups is primarily used to efficiently separate the paper pulp from the plastic coating in waste paper cups, coated paper, and paper-plastic composite materials, thereby enabling the reuse of paper fibres and the recycling of plastic. Compared to traditional methods such as landfill or incineration, this type of equipment reduces resource wastage whilst enhancing the recycling value of waste paper and plastic materials. It is suitable for use by environmental recycling enterprises, renewable resource processing plants, and the paper product processing industry.
Working Principle of Laminated Paper Cup Recycling Equipment

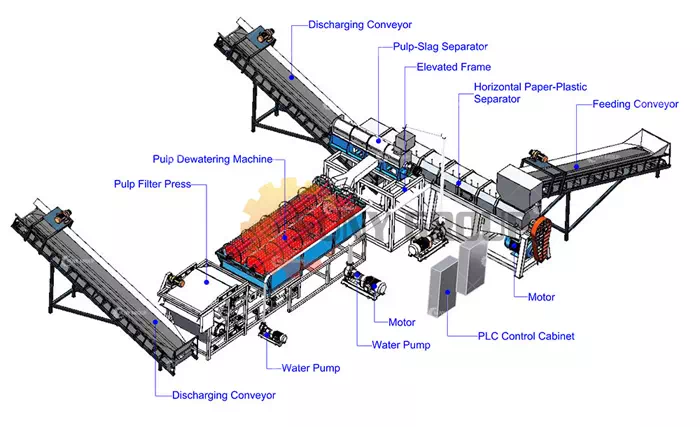

The surface of laminated paper cups is typically coated with a PE plastic layer, making direct recycling difficult using standard waste paper processing methods; therefore, specialised separation equipment is required for treatment. A complete recycling production line typically comprises a conveyor system, pulping equipment, a separation system, dewatering equipment, and a plastic collection system.
During operation, waste paper cups first enter the pulper, where high-speed agitation and hydraulic forces gradually separate the paper fibres from the plastic film. After screening and filtering, the pulp can proceed to subsequent paper-making or paper product processing stages, whilst the separated plastic undergoes washing, dewatering, and re-pelletisation.
Compared to manual disassembly, mechanical separation not only offers higher processing efficiency but also reduces paper fibre loss and improves recycling purity, making it suitable for continuous large-scale production.
Core Equipment of the Paper Cup Recycling Production Line
The complete set of paper-plastic composite material recycling equipment typically adopts a modular design, allowing for configuration adjustments according to production volume requirements.
The pulper is the core equipment in the production line; its primary function is to rapidly break down the structure of the paper cups, enabling the pulp to be fully separated from the plastic layer. Some models feature wear-resistant blades and high-strength rotor structures, enabling them to withstand long-term continuous operation.
The screening system is used to filter out impurities and incompletely separated materials, thereby improving pulp purity. Dehydration equipment is responsible for reducing the moisture content in the pulp and plastic, thereby lowering subsequent transport and processing costs.
To enhance automation, some production lines are also equipped with automatic conveyors, control cabinets, and intelligent monitoring systems, allowing operators to view equipment operating status in real time and minimise manual intervention.
The equipment is typically compatible with processing paper cups, bubble tea cups, paper food containers, and coated waste paper of various specifications, thereby enhancing the utilisation rate of the entire production line.
The Value of Poly-Paper Composite Recycling Equipment
With the continued increase in the use of disposable paper cups and takeaway packaging, the issue of processing coated waste paper has gradually come into the spotlight. Traditional methods struggle to effectively separate paper from plastic, whereas specialised recycling equipment enables resource reuse and alleviates environmental pressure.
The recovered pulp can be used to produce recycled paper, cardboard, and other products, whilst the plastic component, once processed, can re-enter the plastic product manufacturing cycle. This resource recycling model not only reduces waste emissions but also enhances the economic value of waste paper and plastic materials.
