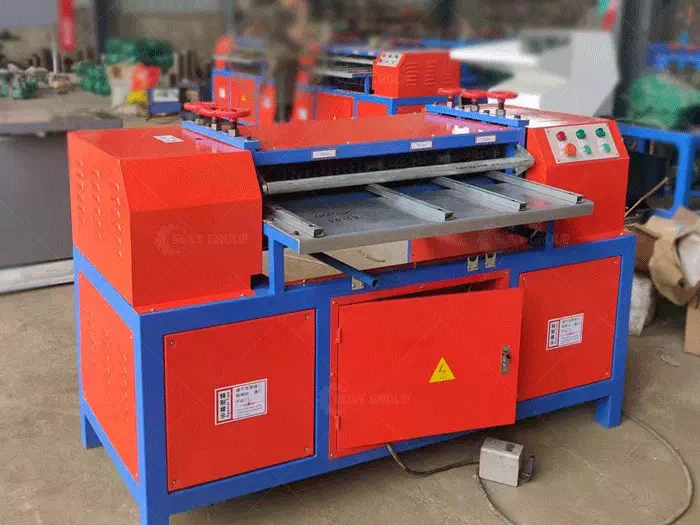

Scrap Copper Aluminum Separator for Radiator Recycling
The copper-aluminium radiator separator is a piece of equipment specifically designed for the recycling and processing of waste air-conditioning radiators, automotive radiators, and various types of copper-aluminium composite radiators. Through mechanical cutting and directional separation processes, it rapidly separates copper tubes from aluminium fins, enabling the high-purity recovery of both metals, reducing the costs associated with manual dismantling and improving the utilisation rate of scrap metal resources. It is a commonly used pre-treatment device in scrap metal recycling enterprises.
Scrap Copper Aluminum Separator for Radiator Recycling
High-efficiency mechanical separation enhances the value of copper and aluminium recovery.
Copper-aluminium radiators consist of copper tubes and aluminium fins that are tightly bonded together. Traditional manual disassembly is inefficient, labour-intensive and prone to causing damage to the metal. The copper-aluminium radiator separator utilises multiple sets of carbide blades for continuous cutting. The optimised spacing of the blade shafts and a well-designed guide structure enable the mechanical separation of the copper tubes from the aluminium fins along the bonding line. As no high-temperature melting or chemical treatment is required, the integrity of the copper and aluminium materials is effectively preserved.
SUNY GROUP’s upgraded equipment has been optimised in terms of blade structure, drive system and frame stability, enabling it to accommodate single-layer, double-layer and multi-layer radiators of various specifications, thereby broadening the equipment’s scope of application. The equipment features a push-button control system supporting forward and reverse operation, with processing speeds adjustable according to the material of the radiator, ensuring simple operation and convenient maintenance.
Upgraded Design Enhances Equipment Stability
The equipment’s core components utilise high-hardness, wear-resistant alloy blades, which offer excellent impact resistance. These blades experience minimal wear during continuous processing, effectively extending their service life and reducing long-term maintenance costs. The entire machine features a steel frame, ensuring stable operation with low vibration, making it particularly suitable for long-term, continuous production.
Based on the equipment specifications, the main configurations for this model include:
Dimensions: 1750 × 1000 × 1200 mm
Motor power: 7.0 kW
Number of blades: 65
Total weight: approx. 700 kg
Processing capacity: 200–300 kg/h

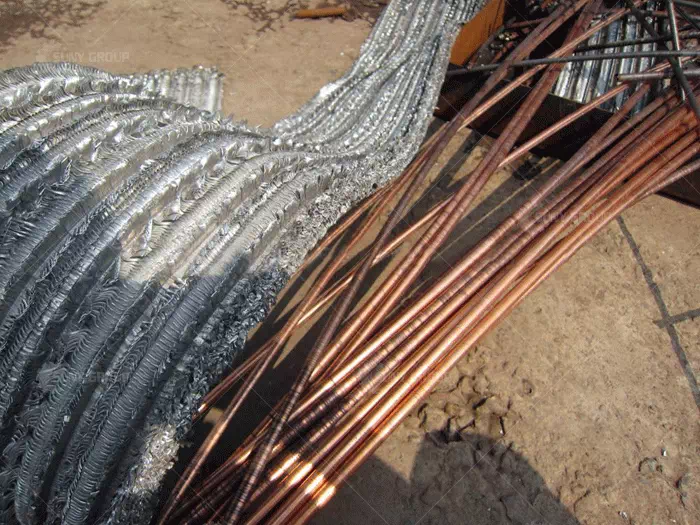

Separated Copper and Aluminum
For small and medium-sized scrap metal recycling centres, dismantling enterprises and resource recovery plants, this processing capacity meets daily continuous processing requirements whilst balancing equipment footprint and energy consumption, offering good cost-effectiveness.
Suitable for a wide range of scrap radiator recycling scenarios
Copper-aluminium radiator separators are widely used in the resource recovery of scrap products such as air-conditioning radiators, automotive radiators, industrial heat exchangers and refrigeration equipment radiators, and can serve as a key front-end unit in copper and aluminium recycling production lines. The separated copper tubes and aluminium fins can proceed directly to subsequent sorting, baling or smelting stages, thereby enhancing the recovery value of the recycled metals.
Should you require detailed technical specifications, applicable radiator specifications, processing procedures, or a quotation for the copper-aluminium radiator separator, please do not hesitate to contact us. We can provide a tailored equipment configuration plan based on your specific raw material types and production capacity requirements.
