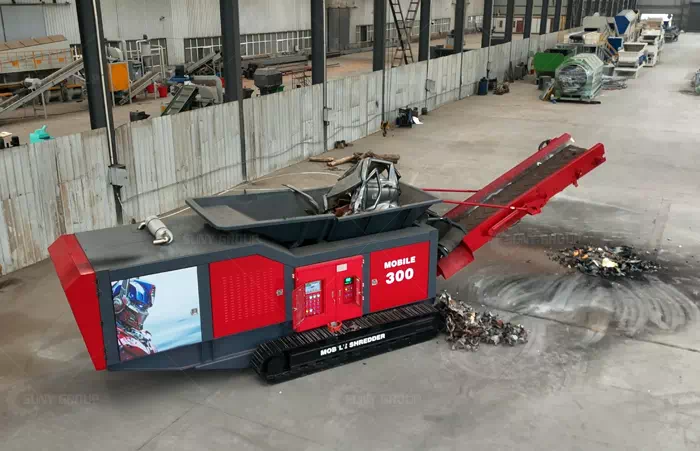

Tracked Mobile Shredder for Scrap Metal Recycling
The tracked mobile metal shredder is a heavy-duty shredding machine driven by a tracked undercarriage, specifically designed for the on-site processing of baled scrap steel, mixed metals, and construction waste. It utilises a high-torque shearing system to perform continuous shredding operations, thereby reducing transport costs and enhancing processing efficiency.
Tracked Mobile Shredder for Scrap Metal Recycling
Equipment Structure and Core Operating Principles
The unit features a tracked mobile chassis, enabling it to access complex job sites directly and eliminating the need for secondary material handling. The entire machine is powered by an independent diesel generator set, making it suitable for environments without mains electricity or temporary construction sites.
The main shredding system utilises a hydraulic transmission structure, ensuring smoother power transfer whilst incorporating overload protection. In the event of material jamming or excessive load, the system automatically reverses to release pressure, thereby minimising the risk of downtime. Key shredding components include reinforced twin-shaft shredding rollers and a high-strength blade assembly, enabling continuous shearing of high-density scrap steel bales.
The control system supports two modes: remote control and manual operation, enhancing on-site adaptability. It is also equipped with a pressure monitoring and remote diagnostics system, enabling real-time monitoring of operating conditions.
Technical Specifications and Processing Capacity Analysis
This series of mobile shredders comprises three models—the MS-260, MS-300 and MS-460—collectively covering medium to large-scale waste processing requirements. The power output ranges from 190/260 kW to 290/400 kW in incremental steps. Combined with a low-speed, high-torque operating mode of 0–40 r/min, this enables the cutting rollers to maintain stable engagement and continuous shearing capacity when processing high-density scrap steel. With shaft diameters of 560 mm and 680 mm respectively, the design structurally enhances impact resistance and load-bearing capacity, making the machines suitable for long-term, high-intensity operations.
In terms of processing capacity, the three models have output rates of 5,000–10,000 kg/h, 8,000–15,000 kg/h and 10,000–20,000 kg/h respectively, catering to recycling scenarios of varying scales. The maximum overall dimensions of the machine are approximately 9.8 m × 2.45 m × 4.35 m, ensuring high throughput whilst maintaining mobility. The design philosophy centres on ‘low speed + high torque’, enabling the equipment to handle complex materials such as baled scrap steel, mixed metal blocks and high-hardness industrial waste with stability.
Application Scenarios and Operational Advantages
The tracked mobile metal shredder features a hydraulic drive system coupled with an automatic reverse protection mechanism, enabling the equipment to rapidly release pressure under high loads or in the event of material blockages, thereby ensuring continuous and stable operation. At the same time, the equipment possesses strong material adaptability, capable of handling a wide range of complex materials including baled scrap steel, industrial metal waste and mixed construction waste; Furthermore, the tracked mobile chassis allows the machine to access work sites directly, making it suitable for a wide range of operating conditions, including vehicle dismantling yards, scrap steel collection centres and large-scale demolition projects, thereby enabling an efficient ‘on-site processing, reduced transport’ operational model.
As the processing of recyclable resources evolves towards greater efficiency and on-site processing, tracked mobile shredders are becoming essential equipment for the pre-processing of scrap metal. Should you have any requirements or be interested in this product, please feel free to contact us at any time for further information.
