What machinery should be equipped for the waste circuit board recycling equipment?

Time:2020-06-02 10:15 Author:Suny Group

Waste circuit board recycling equipment is not a single piece of equipment, or a group of production lines. Some customers ask: Does waste circuit board recycling equipment need to be equipped with some kind of machinery? Today, I will focus on what equipment is equipped in the production line of waste circuit board recycling equipment.

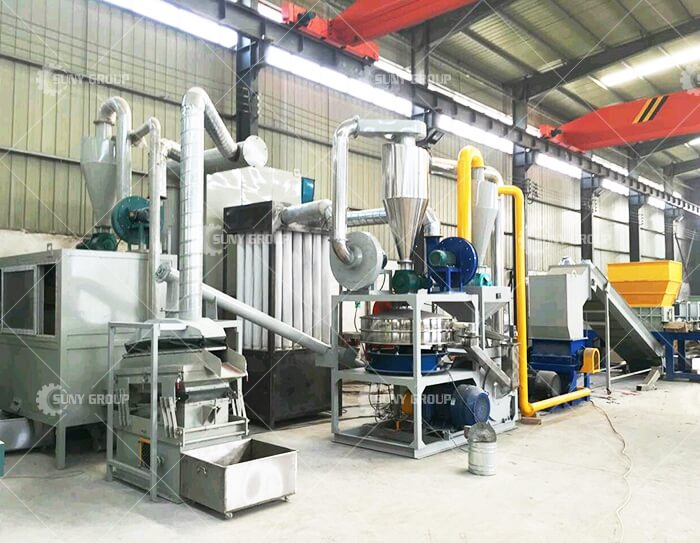

waste circuit board recycling equipment
waste circuit board recycling equipment

The waste circuit board recycling equipment production line is equipped with: metal crusher, turbine mill, air flow separator, electrostatic separator, dust removal equipment and so on.

Process introduction: The first crusher adopts double shaft shredder, the second crusher adopts hammer crusher, and the third crusher adopts high speed turbine crusher. The material is crushed into powder by three-stage crushing, and then sorted by air separation equipment and electrostatic separation equipment. This production line has a novel and unique structure; large production capacity and low power consumption; one-time feeding and multi-machine collaboration; the entire production line is controlled by PLC. The successful development of this machine not only improves the quality of recycled copper, but also prevents secondary pollution. After the separation and sorting equipment, the recovery rate of the metal in the waste circuit board is as high as 98%.

Equipment features: 1. Compact structure, reasonable layout, stable performance and low noise. 2. Adopt PLC to control the complete set of production line to feed evenly and coordinate the operation. 3. Adopt three-level crushing to make the processing capacity reach 800KG per hour. 4. The crushing room uses circulating water to control temperature and reduce noise. 5. A full set of production line adopts negative pressure feeding to effectively reduce dust overflow. 6. The material return system makes crushing more efficient. 7. The separation rate of air separation equipment is as high as 97%. 8. The efficiency of pulse dust removal equipment is as high as 99% or more, which effectively suppresses the volatilization of dust, and fully meets the national environmental protection requirements "Comprehensive Emission Standards for Atmospheric Pollutants" GB16297-1996, without secondary pollution. 9. The high-voltage electrostatic separator makes the separation more precise and efficient, and effectively controls the loss of non-ferrous metals. 10. Set up bridges and guardrails at the height of the complete production line to facilitate maintenance personnel to monitor and maintain the equipment in real time. 11. Equipped with magnetic separation function, can separate the iron from the material.
