Small PVC Copper Wire Recycling Machine
Waste wires and cables come from a wide range of sources, such as car scrapping wires, circuit wires, power cables, electric car wires, etc. There are various types of recycled cables. Most of the waste PVC copper core wires are treated with dry-type copper wire recycling machine, which can achieve regeneration purpose of use.
After continuous innovation, the copper wire recycling machine now has a high copper-plastic separation rate and a stable operation cycle. What is the actual copper content of various common waste wires and cables processed by the copper wire recycling machine, and the copper content of recycled waste wires depends on you It is a good learning opportunity to have a deep understanding of the various economic impacts of recycling copper, know the quality of it, how to produce it after recycling, and understand the practicability of recycling, and continue to face these recycling production problems.

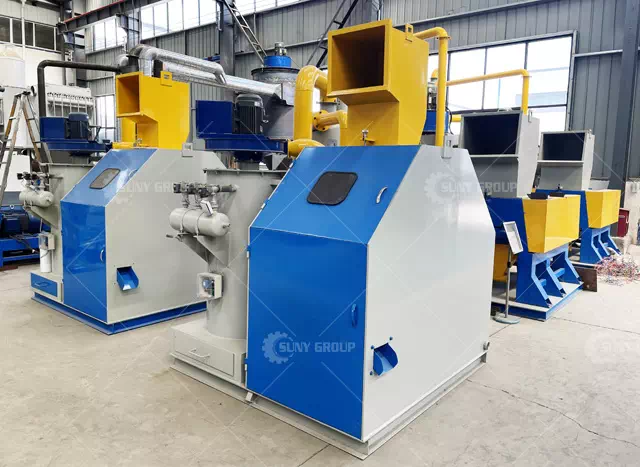

Small PVC Copper Wire Recycling Machine
If you are a novice in the industry and don’t know much about all aspects, then when you buy copper wire recycling machine equipment, start with a small copper wire recycling machine. If all aspects are running very well, you can further increase your investment. Today we will take a detailed look at the small PVC copper wire recycling equipment.
The small copper wire recycling machine is a miniature copper wire recycling machine with novel appearance, saving energy, stable performance, one-time feeding, single machine completion, high separation rate, good dust removal effect, suitable for home work or cable factory operation, with high economic benefits. The output is generally 100kg/h. The structure is divided into some medium and large copper wire recycling machine and small integrated structures. It has the advantages of small footprint, clean sorting and high cost performance.
The working principle of the small copper wire recycling machine:
After the waste PVC copper wire enters the copper wire recycling machine through the feed port, it is crushed. The crushed copper and PVC plastic particles, two kinds of materials with different densities, are produced by the amplitude movement on the screen surface with a certain angle under the action of wind force. The deflection makes the copper wire with high density stick to the screen and move forward to the copper outlet, and the plastic skin with low density floats on the copper wire and flows to the outlet, so as to achieve the purpose of copper-plastic separation. The separation cleanliness rate is proportional to the diameter of a single copper wire. The thicker the single diameter of the copper wire is separated from the plastic, the cleaner the separation is, and the output per unit time is also larger. The thinner the single diameter of the copper wire is separated from the plastic. worse.
Precautions for small copper wire recycling machine operation:
1. The feeding amount should be controlled at about 50% of the output of the machine, and the output should be increased after 3 hours of continuous production. The output should be increased by 10% every 3 hours. It is absolutely impossible to load the material at full load at the beginning.
2. The operating parts of the copper wire recycling machine are filled with new grease every 40 hours of operation, and the bearings of the crusher are filled with new grease every 8 hours of operation.
3. Raw materials should be classified and broken during the production of copper wire recycling machine, and copper wire and aluminum wire should not be mixed together. The wire diameter of each batch of crushed raw materials should be the same size, and the mixing of thick wires and thin wires will affect the separation effect.
4. The initial value of the speed and frequency of the frequency converter of the blower under the copper wire recycling machine is adjusted to 35-40Hz, and the value is increased or decreased according to the sorting situation. The initial value of the speed frequency of the vibrating sorting motor inverter is adjusted to 28-35Hz, and the value is increased or decreased according to the sorting situation.
5. Adjust the initial value of the air volume of the front and rear dust removal and extraction of the copper wire recycling machine until the pointer is in the middle of the adjustment range, and the value will increase or decrease according to the discharge situation.
In addition, when the copper wire recycling machine equipment fails or is cleaned, the power must be disconnected before inspection or cleaning. When the dry copper wire recycling machine equipment is blocked by materials, it must be shut down and the power cut off before cleaning. During the operation of the copper wire recycling machine, if any abnormal situation is found, the power should be cut off in time to troubleshoot and solve the problem. If you are interested in small copper wire recycling machine, please feel free to contact us for consultation.
