Plasma-Assisted Compressor Shell Cutting Machine
The plasma-assisted compressor casing cutting machine is primarily used for dismantling the casings of end-of-life refrigerators, air conditioners and refrigeration compressors. By utilising adjustable cutting parameters, it rapidly cuts through metal casings, providing stable pre-processing conditions for the subsequent sorting and recovery of copper wire, motor components and steel.

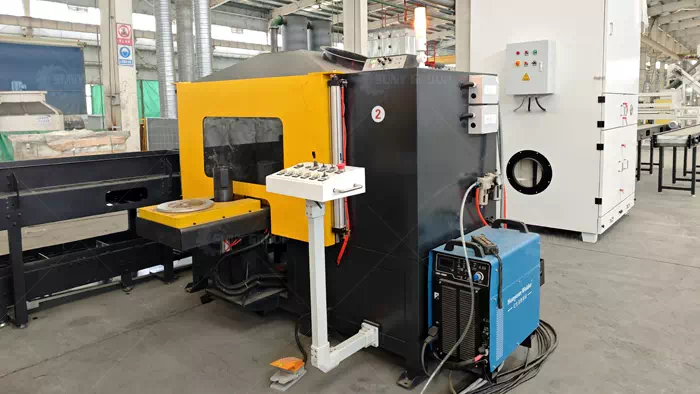

Plasma-Assisted Compressor Shell Cutting Machine
Main Functions of the Equipment
End-of-life compressors typically feature a sealed welded structure, containing a steel casing, motor, copper windings and other components. Manual dismantling is not only inefficient but is also easily affected by variations in casing thickness and structure. Consequently, casing cutting is a critical stage in the compressor recycling process that determines the efficiency of subsequent dismantling.
The plasma-assisted compressor casing cutter utilises plasma cutting to create continuous cuts at designated points on the casing, enabling sealed compressors to be opened rapidly. Compared to relying solely on mechanical cutting, the plasma process is better suited to handling metal casings of varying shapes and thicknesses, whilst reducing the operational time wasted on repeated repositioning.
Cutting Parameters and Equipment Design
The primary focus of this equipment is not merely to increase cutting speed, but to ensure stable and repeatable cutting results for compressors of varying specifications. Operators can adjust relevant parameters—including cutting frequency, cutting direction and operating trajectory—according to the compressor’s dimensions, casing shape and cutting location.
This adjustable parameter design is of practical significance in continuous recycling operations. As the specifications of end-of-life compressors are not entirely uniform, the use of a fixed cutting programme can easily lead to deviations in cut positions or incomplete cutting. By adjusting the cutting path, the position of the housing opening can be optimised for different compressor models, whilst minimising the impact on recoverable internal components such as copper wiring and motors.
The equipment typically comprises a feeding and positioning mechanism, a compressor clamping system, a plasma cutting system, a control system and safety guarding. The positioning mechanism ensures the workpiece remains stable, the cutting system creates openings in the casing, whilst the control system adjusts operating parameters to standardise the entire dismantling process.

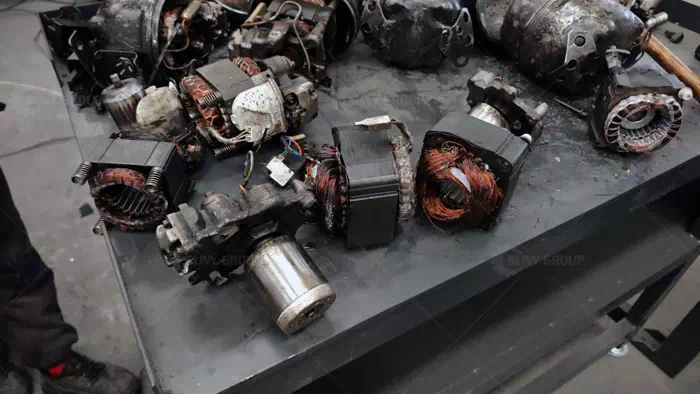

Compressor Scrap after Cutting
Application in Compressor Recycling Lines
Once the casing has been cut, the compressor can proceed to subsequent dismantling, shredding or sorting processes. The steel casing can be recycled as scrap steel, whilst the copper windings and motor components can be further processed in accordance with recycling procedures. This transforms the originally enclosed compressor into materials that are easier to sort and process.
For enterprises specialising in the recycling of waste household appliances and refrigeration equipment, the value of the casing cutting machine lies primarily in reducing manual dismantling, enhancing the continuity of front-end processing, and improving conditions for subsequent material sorting. Actual equipment specifications should be configured according to the compressor model, casing material, processing capacity and the process of the entire production line, rather than simply selecting equipment based on theoretical cutting speeds.
If you would like to learn more about the structure of plasma-assisted compressor casing cutters, the applicable compressor specifications and complete production line configurations, please feel free to contact us at any time; we will determine the most suitable equipment solution based on your specific material requirements.
